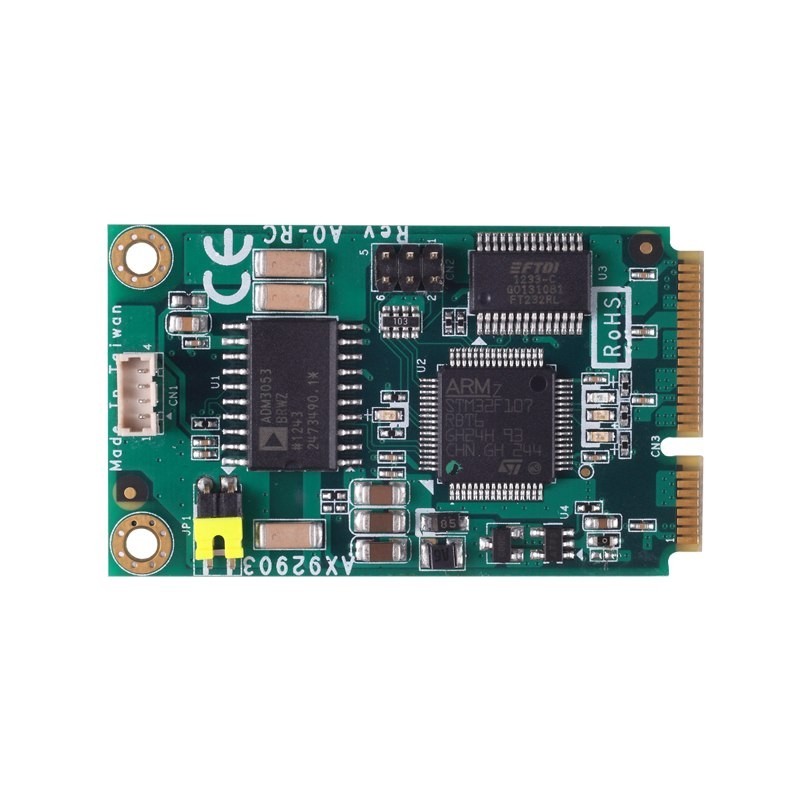

PCI Express Mini Module with CAN Bus

Product code: MPCIE-CAN1

One CAN bus interface
Supports both CAN 2.0A and CAN 2.0B
Up to 1Mbps CAN transmission speed
2KV isolation
Drivers support Windows® 7/ 7 x64/ 8/ 8 x64/ 8.1/ 8.1 x64
Dimensions: 51 x 30 mm

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    The CAN (Controller Area Network) is a serial bus system and is usually used in structuring

    intelligent industrial device networks and building smart automatic control systems. User

    is easily capable of integrating computer with PCI-Express Mini Card socket to CAN network.

    It comes with CAN monitor tool that displays the CAN received message in decimal

    or hexadecimal mode and also shows the time stamp of each received message. Both of the

    GUI management program and programming guide are ready for use. The CAN host, monitor

    or HMI, can access and control CAN devices through AX92903.

    MPCIE-CAN1
    2 Items

    Data sheet

    LED
    Power, CAN TX/RX, CAN error, firmware update
    Isolation
    2KV
    Software
    Protocol: CAN 2.0A/2.0B. Transmission Speed: Up to 1Mbps. Receive Buffer: 1000 data frames. NVRAM: 64Kbyte (for user-defined). Filter ID supported. Time Stamp: Up to 1us. RTR supported. OS Driver Support: Windows® 7/ 7 x64/ 8/ 8 x64/ 8.1/ 8.1 x64.
    Controller
    STM32107
    Transceiver
    ADM3053
    CAN Bus Interface
    One channel
    Operating Temperature
    -20°C~70°C
    CAN Bus Connection
    4-pin connector
    Terminator Resistor
    Onboard 120Ω
    Support USB 2.0 to CAN 2.0A and CAN 2.0B
    USB 2.0 full speed
    Form Factor
    Mini PCI-Express
