Microwave barrier. Perimeter monitoring for alarm system or video surveillance. Max reach is 100 meters

Mw-beam 100 is a microwave-based barrier sensor for outdoor use.

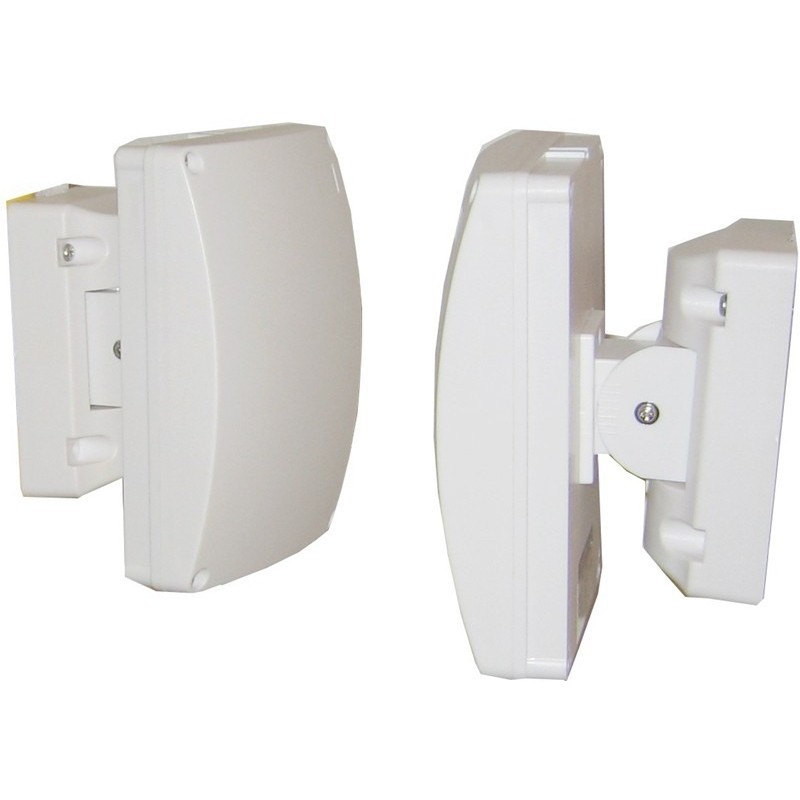

The package consists of a transmitter and a receiver when it is mounted facing each other, create a monitored area from 20 up to 100 meters long, 2 meters high and one meter wide. All that comes in between the transmitter and the receiver will activate the relay, for example. Can be connected to the input of an alarm system or camera that starts recording. With regard to the snow, grass and small animals in the beam are not registered.
for accurate calibration of direction of distance of 25 meters, it may be necessary to the Brugemw-beam100t that measures and displays the signal strength, so adjustment will be easy .
Microwave Rate: 10,525 GHz.
The modulation frequency: 1.0 kHz.
Length of protected zone: My 20 meters. Max. 100 meters.
Width of the protected zone: 1 meter.
The height of the protected zone: 2 meters.
Resistance: IP55.
Alarm period: 3 SEK ..
Release contacts: .. NC , normal closed max 28 VDC, max. 0.1 a.
