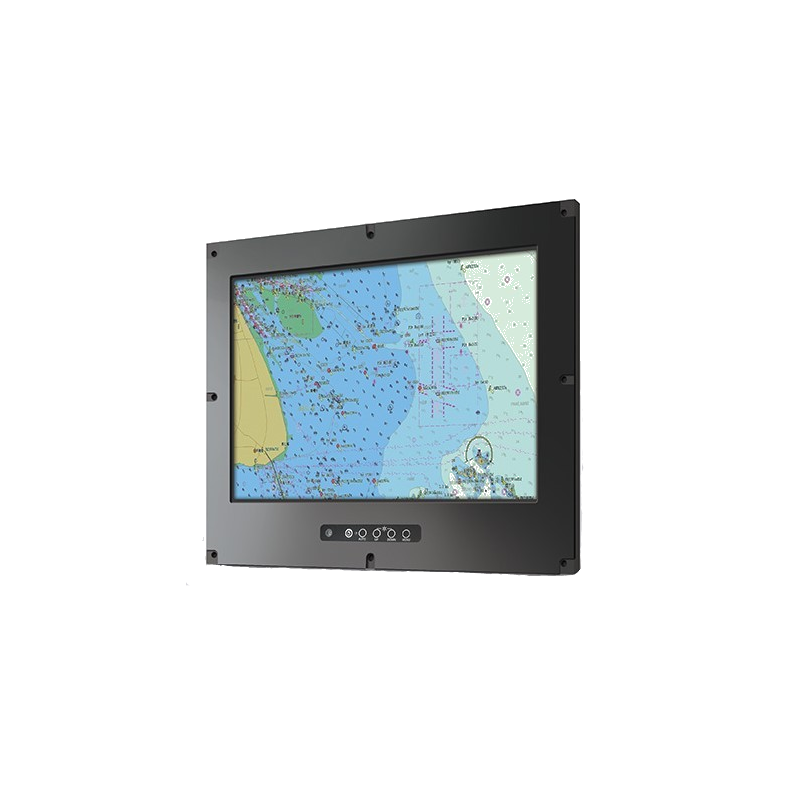

17 "Marine Panel Monitor, Wide Screen, Front IP66, Backside IP54, 1440 x 900, 16: 9, LED Back Light, 1000 Nits, VGA
Product code: MON17-WS-MFM-MARINE
Marine 17 "wide screen Vesa mount. Has LED back light
Dust and water repellent - can withstand flush
17" TFT monitor with ECIDS color display. ECDIS is one of the most stringent applications of display technology. This monitor is for Vesa mounting. Good for use in harsh environments. Available in multiple sizes
Contact our sales department for more information.
MON17-WS-MFM-MARINE
Data sheet
- Weight
- 5 KG
- Forsyning
- 9~36VDC wide voltage input (Isolated DC-DC voltage regulator built-in)
- Driftstemperatur
- 0o C ~ 50o C
- IP-Tæthed
- IP65 Front, IP54 bagside
- Signaler
- Analog RGB (0.7/1.0 Vp-p, 75 ohms)
- I/O
- 1 x VGA, 1 x PC audio (jack),
- Touch
- Optional: Resistive touch, Capacitive touch, infrared touch
- Kontrast
- 1000 cd/m2 (typ) / 800 : 1
17 "TFT & Nbsp; Monitor With LED Back Light
ECDIS Color Display
IP66 Front
IP54 Backside
Optional: Built-in Touch
1 x VGA < Br> 1 x Jack Jack
1 x 9-36V DC Power Supply
Wide Screen
Anit-shock and Vibration Design
LED Backlight
Mounting: VESA 75
