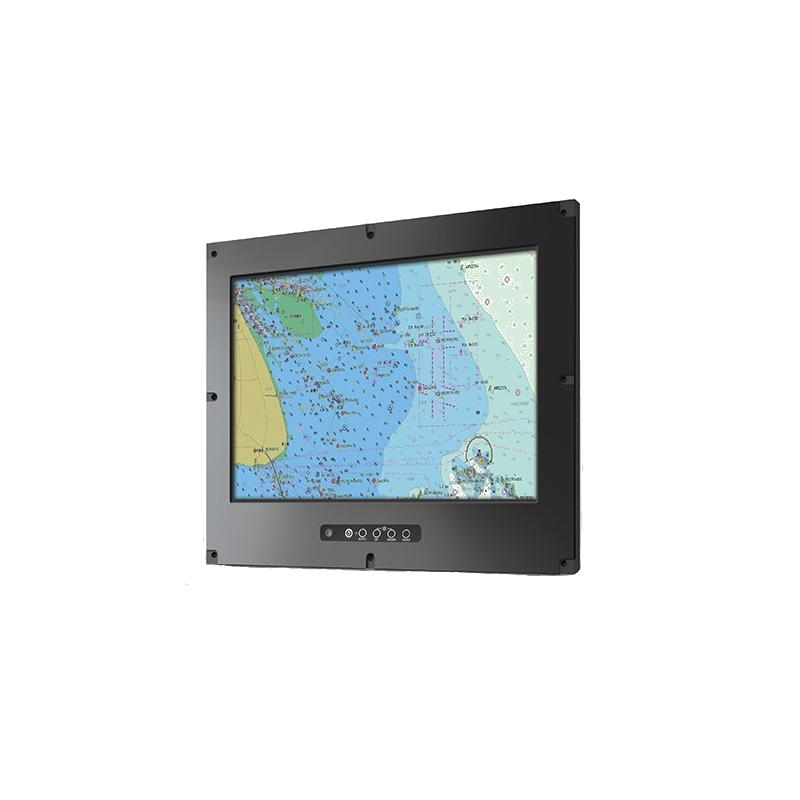

19 "Marine Panel Monitor, Waterproof IP66, Dustproof IP54, 1280 x 1024, LED back light, 250 nits, VGA 5:4 format

Product code: MON19-MFM-MARINE

19 "TFT monitor with LED back light
ECDIS color display
IP66 Front
IP54 Backside
1 x VGA
1 x Jack

1 x 9-36V DC power supply < br> Wide Screen
Anit-shock and Vibration Design
Mounting: VESA 100
Optional: Built-in Touch

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    Marine 19 "5: 4 monitor
    Dust and water repellent - can withstand flushing
    19" LED monitor with ECIDS color display. ECDIS is one of the most stringent applications of display technology. This monitor is for Vesa mounting. Good for use in harsh environments. Available in multiple sizes.

    Contact our sales department for more information.

    MON19-MFM-MARINE

    Data sheet

    Weight
    6-7 KG
    Forsyning
    9~36VDC wide voltage input (Isolated DC-DC voltage regulator built-in)
    Driftstemperatur
    0o C ~ 50o C (32o F ~ 122o F) , 10% ~ 90%
    IP-Tæthed
    IP65 Front, IP54 bagside
    Signaler
    Analog RGB (0.7/1.0 Vp-p, 75 ohms)
    I/O
    1 x VGA, 1 x PC audio (jack)
    Touch
    Optional: Resistive touch, Capacitive touch, infrared touch
    Kontrast
    250 cd/m2 (typ) / 800 : 1
