4K - KVM extender of Gigabit TCP/IP or point to point RJ45 100 meters, HDMI + USB for touch screen. Can be powered by PoE

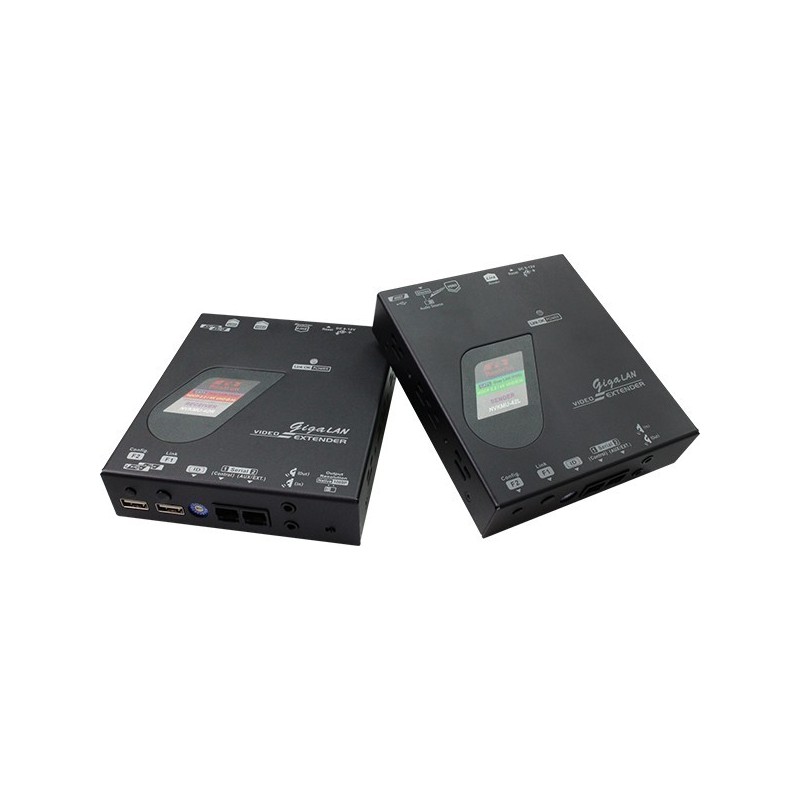

NVKMU-M42 (POE), 4K2K HDMI + USB + Serial extender over Giga Lan (POE)
  • NVKMU-M42 (POE), 4K2K HDMI + USB + Serial extender over Giga Lan (POE)
  • NVKMU-M42 (POE), 4K2K HDMI + USB + Serial extender over Giga Lan (POE)
Product code: BOOST-HDMI100-4K

HDMI Booster, set with 1 x transmitter, 1 x receiver
4K HDMI + USB + Serial extender of Giga LAN (POE)
Point-to-point RJ45: Up to 100 meters
Over TCP / IP LAN Extender
Video signal 4x USB 2.0 signal over LAN
Up to 16 receivers to one transmitter selection via DIP switch
Up to four pairings while the Gigabit LAN
Switch must support IGMP snooping, multi casting
Auto EDID emulation
HDMI with stereo sound
Bi-directionel IR
HDCP approved and Blu-ray ready
4K @ 30Hz, 2160p, 1080p, 1080i, 720p, 720i
Full HD, 4K UHD system
Video wall: 2 x 2, 3 x 3, 4 x 4 ... 9 x 9 display format
Dimensions: 130 x 117 x 28 mm

  • Add to Comparison Remove from Comparison
    • 7,090.00 DKK
    Tax excluded
    On the way in
    Quantity

    BOOST-HDMI100-4K

    Data sheet

    Weight
    2 x 500g
    Forsyning
    DC 9~12V, 1.5A
    Netværk
    Giga LAN
    LED
    1 x each unit
    Rækkevidde
    Point-to-point: 100 meters
    Input
    Sender: 1X HDMI
    Output
    Reciever: 1 X HDMI
    Lyd
    Audio Jack x1 each unit. Audio Switch x1 (sender)
    USB
    Sender: min-USB x1 Reciever: USB-A x 4
    Dimensioner
    28 x 117 x 130 (each Unit)
    Video
    4K@30Hz (3840 x 2160) Full HD (1920 x 1080) WUXGA (1920 x 1200) @ 60 Hz
    Other
    Set w/ 1 x transmitter og 1 x receiver
