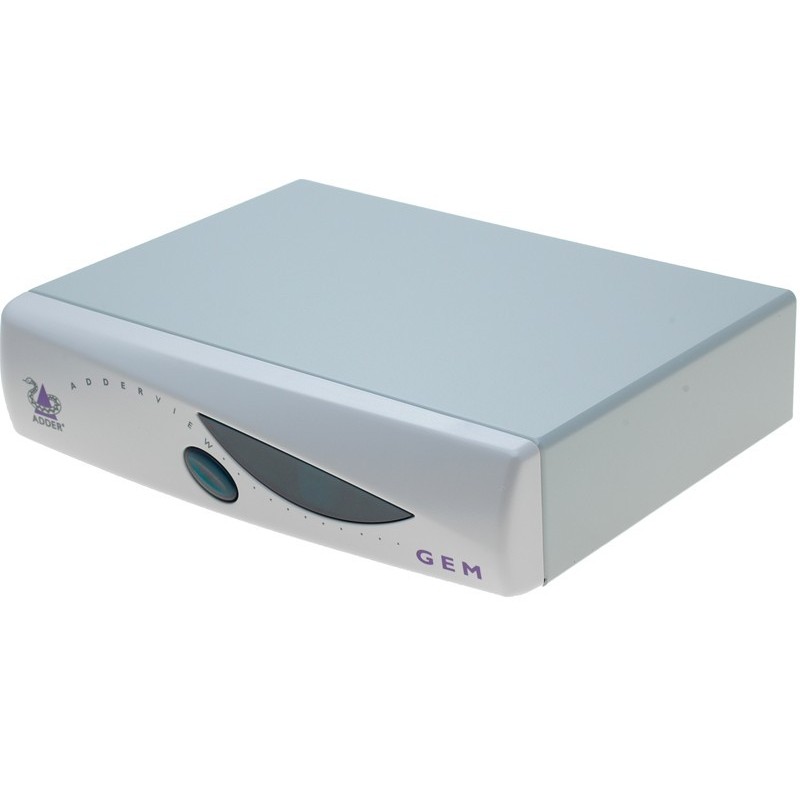

4 ports Professional KVM switch, VGA, PS / 2 Adder View SAVE AVG4 4-port
Product code: KVM4-VGA-PS2
DANBIT recommends this switch with reference to high quality and reliability.
SW4KEYMON + has high VGA resolution without shadows or flickering image.
SW4KEYMON + is suitable for graphic use or high resolution requirements.
SW4KEYMON + can switch between up to 4 PCs in resolutions up to 1900 x 1440 points.
With CNV USB PS2 +, PCs without PS / 2 ports for mouse and keyboard can be used with SW4KEYMON +.
Cables not included.
The box can automatically switch between active PCs at an interval that can be set to 2, 5, 7, 10, 15, 20, 30 or 60 seconds. Switching between the PCs is done via push buttons on the front panel or via so-called hot keys on the keyboard or mouse. A password can be set to prevent unauthorized use
Remember the keyboard settings for each PC. 100% software independent.
KVM4-VGA-PS2
3 Items
Data sheet
- Forsyning
- Ekstern strømforsyning er ikke nødvendig. Den forsynes igennem PS/2 porten på pc’en. Hvor PS/2 porten ikke leverer nok strøm, kan DC5V/4A-Q bruges
- Stik
- Mus, tastatur: 4 x mini DIN6 hunstik. Skærm: SW4KEYMON+: 4 x DB15HD hanstik
- Type
- 2-ports KVM switch (Keyboard Video Mouse) til fælles tastatur, skærm og mus
- Skærm
- Maks. opløsning: 1900 x 1440 punkter, 60 Hz
- Bemærk
- Nogle få musetyper kan have problemer med omskifterbokse på grund af manglende kompatibilitet. Skærmbillede kan forringes ved lange kabler og maks. opløsning.
- Dimensioner
- 50 x 230 x 170 mm (H x B x D)
Op til 1900 x 1440 punkter, til pc’er og servere med PS/2 eller USB
