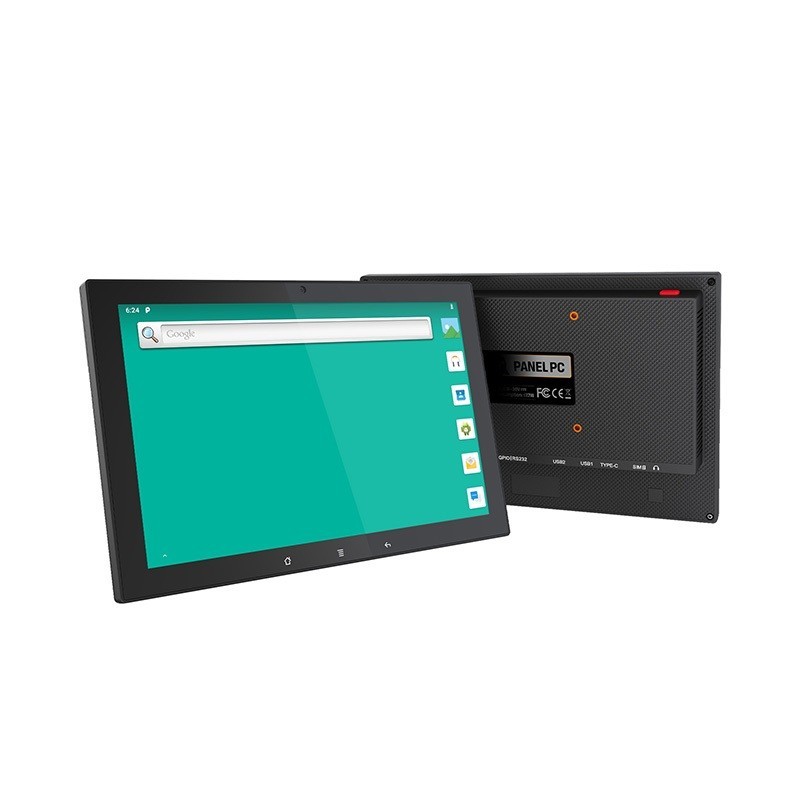

10" Industrial Panel PC with Android, Capacitive Touch, 1000 nits High Brightness with Auto Dimming, 9~36VDC
Product code: IPP10A
Optional 802.11a/b/g/n/ac, 2.4/5Ghz Wi-Fi
Optional Bluetooth 5.0, 2402MHz~2480MHz
Optional Mobile network: 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM)
Optional GNSS: (GPS, GLONASS)
Optional front camera, 5MP
IPP10A
Data sheet
- Weight
- 980g
- CPU
- Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor
- Forsyning
- 9~36VDC
- Opløsning
- 1280 x 800 (16:10)
- Driftstemperatur
- -10° ~ +60°C
- Porte
- 3 x RS232 DB9
- Lysstyrke
- 1000 nits
- Netværk
- Optional Cellular: 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM)
- Hukommelse
- 2GB LPDDR3
- Lyd
- 3.5mm Audio Jack
- USB
- 2 x USB-A, 1 x USB-C
- Kamera
- Optional front camera, 5MP
- LAN
- RJ45 Gigabit Ethernet
- Dimensioner
- 249 × 166 × 32mm
- GPS
- Optional GNSS: (GPS, GLONASS)
- GPIO
- 2 input, 2 output
- Storage
- 16GB eMMC
- bluetooth
- Optional Bluetooth 5.0, 2402MHz~2480MHz
- HDMI
- 1 x HDMI output
- WiFi/WLAN
- Optional 802.11a/b/g/n/ac, 2.4/5Ghz Wi-Fi
10" Industrial Panel PC
OS: Android 10
Resolution: 1280 x 800 (16:10)
Viewing angle: 170°/170°
Light sensor (automatic dimming)
10.1" IPS screen with 1000 nits brightness and capacitive touch
1 x RJ45 Gigabit Ethernet
4 x GPIO (2 inputs, 2 outputs)
3 x RS232 (via DB9 octopus cable)
1 x HDMI output
2 x USB-A host
1 x USB-C OTG
3.5mm audio output
Memory: 2GB LPDDR3 + 16GB eMMC, Option: 4GB + 64GB
Supply voltage: 9~36VDC (mains adapter not included)
Operating temperature: -10° ~ +60°C
Dimensions: 249 × 166 × 32mm
Weight: 980g
