X-KEYS - Programmable USB switch box to 6 / 12 (dual cable) external contacts. USB HID commands. acquisition contacts
Product code: USB-KEY6SW

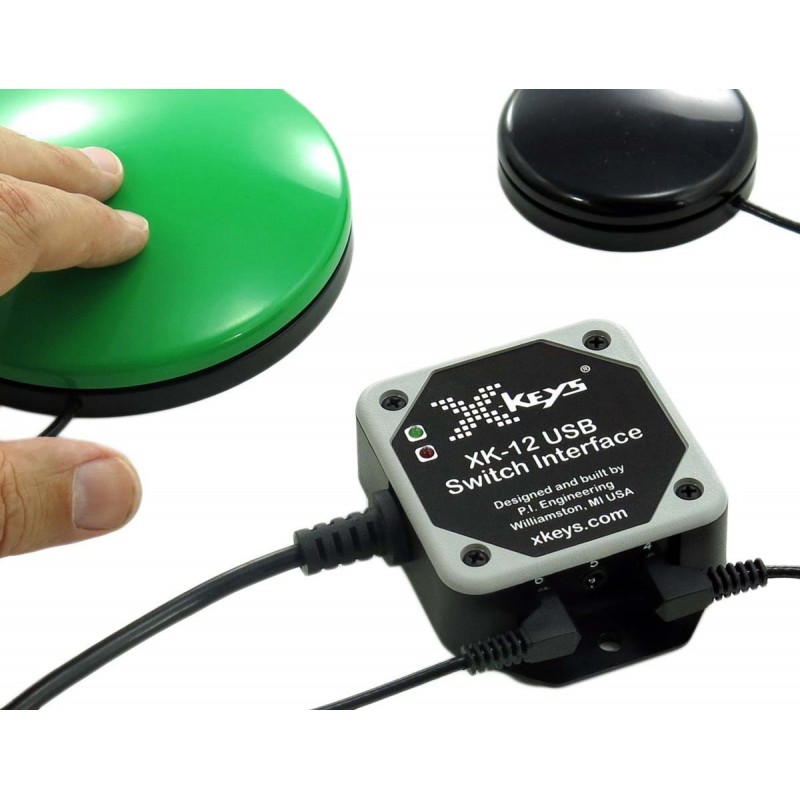

USB Switch Interface
6 dual switch ports in a compact, low profile footprint. Easily convert any switch closure to a keyboard, multimedia, or mouse command.
Compatible with Windows, Mac, Linux, and Android
Any switch can trigger an action on your computer.
Any keyboard shortcut your software uses can have a designated switch (copy, paste, save, open, close).
Switches are easily set up to launch applications, open files, or type short lines of text like names, addresses, and account numbers.
Switches are connected via Assistive Technology standard 3.5mm (1/8”) phone plugs.
USB-KEY6SW
Data sheet
- Weight
- 160 g
- Forsyning
- Power Source USB port, nominal voltage - 5 VDC Power Consumption 21 mA @ 5 VDC
- Driftstemperatur
- -20 to 60 C
- Stik
- Wired USB 2.0 standard “A” plug
- Porte
- 6 ports (split to 12 with optional Y cords)
- Tilslutning
- USB
- OS SUPPORT
- Use: Any OS via USB HID | Programming: Windows XP through 10, Mac OS X 10.4 through 10.10
- Farve
- Black
- IP-Tæthed
- IP 40, typical indoor office environment
- Software
- Windows: MacroWorks 3.1 Android: X-keys Android Mac OS X: ControllerMate
- Dimensioner
- 65mm x 65mm x 26mm
- Funktioner
- Programmable
- Other
- HID keyboard, HID mouse, HID game controller, HID multimedia
USB Switch interface
6 input ports for push buttons with 3.5mm jack connector.
3.5mm Jack is stereo and can handle 2 push buttons
if 12 push buttons, then with optional splitter cable
For USB Port
Mountering Flanges
Any button pressure can trigger USB HID command
Software for button macro programming
setup lies in the device
