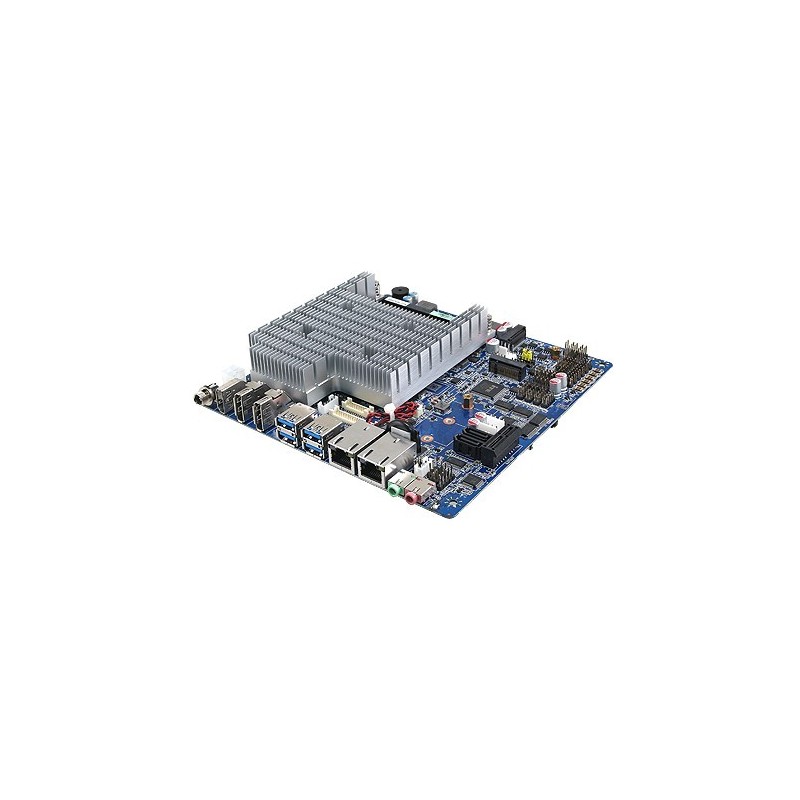

Thin Mini ATX motherboard based on 6th gen, i7 / i5 / i3 & Celeron

Product code: BK1151-MITX+

Onboard 6th Gen. Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor
2 x 260-pin DDR4 2133 MHz SO-DIMM  supports up to 32GB
DP++, HDMI/DP, Dual channel 18/24-bits LVDS
1 x Intel® I211AT PCI-e Gigabit Ethernet
1 x Intel® I219LM Gigabit Ethernet PHY
Realtek ALC892 Audio CodecTI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier
1 x M.2 Type B 3042/2242/2260/2280, 1 x M.2 Type A, 1 x SIM card Slot, 1 x PCI-e
2 x SATA III, 2 x SATA Power, 4 x USB 2.0, 4 x USB 3.0
4 x RS232, 2 x RS232/422/485, 16-bit GPIO
Mic-in, Line-out, 1 S/PIDF, SD card slot, Onboard Infineon SLB9665 TPM 2.0
Optional eMMC
DC in +12V~24V

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    The Thini Mini ATX solution comes with the CPU if requested.

    BK1151-MITX+

    Data sheet

    Weight
    0.4Kgs
    CPU
    6th Gen Intel® Core™ i7-6600U, 2-Core, 2.6GHz processor i5-6300U, 2-Core, 2.4GHz processor i3-6100U, 2-Core, 2.3GHz processor 3955U, 2-Core, 2.0GHz processor
    Forsyning
    +12V~24V Type AT/ATX
    Udgange
    Multi display HDMI + HDMI/DP + LVDS
    Opløsning
    DP: 4096 x 2160 @ 60Hz (1 x HDMI/DP, 1 x DP++) HDMI: 3840 x 2160 @ 30Hz LVDS: 1920 x 1080 @ 60Hz (Chrontel. CH7511B eDP to LVDS Converter) Co-lay eDP 1.3: 4096x2160 BOM optional
    Driftstemperatur
    0 ~ 60°C (32 ~ 140°F)
    Porte
    4 x RS232 2 x RS232/422/485
    BIOS
    AMI 128Mbit SPI BIOS
    Watchdog
    H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
    SATA
    2 x SATA Power 2 x SATA III
    Hukommelse
    2 x 260-pin DDR4 2133 MHz SO-DIMM supports up to 32GB
    Lyd
    Realtek ALC892 supports 2-CH Audio Interface Mic-in, Line-out Audio Amplifier 2 x Stereo Class-D 6W Audio Amplifier
    Luftfugtighed
    0 ~ 90% Relative Humidity, Non-condensing
    Ethernet
    2 x RJ45 10/100/1000 1 x Intel® I219LM Gigabit Ethernet PHY 1 x Intel® I211AT PCI-e Gigabit Ethernet
    USB
    4 x USB 2.0 4 x USB 3.0
    Dimensioner
    6.69” x 6.69” (170mm x 170mm)
    Grafik
    Intel® Skylake U SoC integrated Graphics 2CH 18/24bits LVDS 1920 x 1080 Chrontel. CH7511B eDP to LVDS Converter
    Udvidelser
    1 x PCI-e 1 x M.2 Type B 3042/2242/2260/2280, 1 x M.2 Type A 1 x SD card slot Supports SD/ SDHC Card 1 x SIM card slot
    DIO
    1 x 16-bit GPIO
