Fanless Embedded PC with Intel® Celeron® N3350, 2 HDMI, 2 GbE LANs and 6 USB, OS support Win 10 IoT, Linux
Product code: EPC-N3350-2H6U

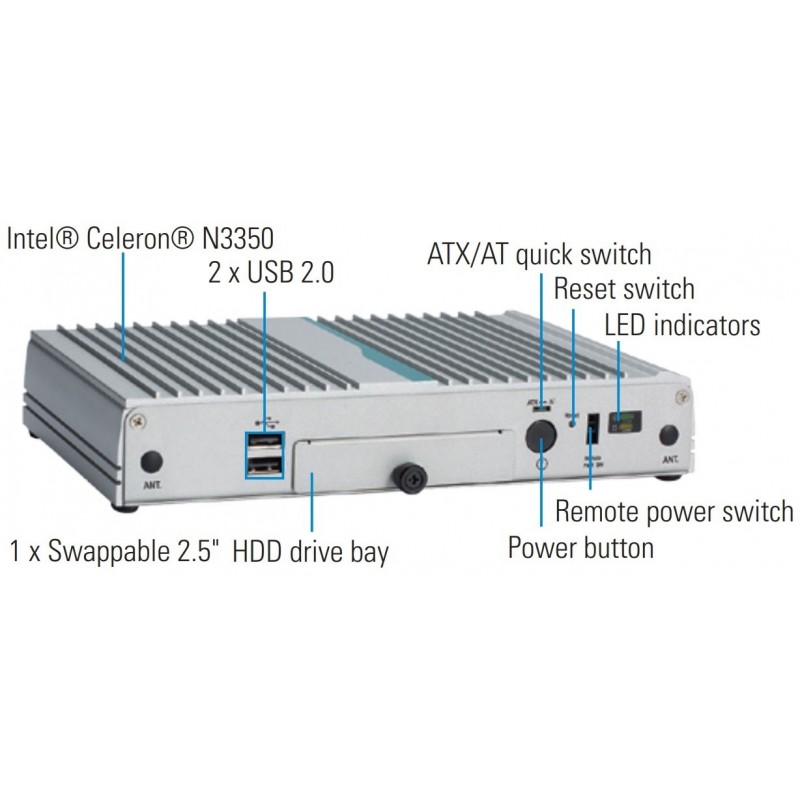

Example of one of our fanless Embedded PCs. Can supply complete with SSD, RAM and OS installed.
EPC-N3350-2H6U
6 Items
Data sheet
- Weight
- (net/gross) 1.15 kg (2.53 lb)/1.5 kg (3.3 lb)
- CPU
- Intel® Celeron® N3350 2.4 GHz with turbo boost
- Forsyning
- Power Input 12 VDC, NO adapter included, screw type connector
- Driftstemperatur
- -5°C to +60°C (+23°F to +140°F) (with W.T. DRAM & SSD)
- Chipset
- SoC Integrated
- BIOS
- AMI UEFI BIOS
- Watchdog
- Watchdog Timer 255 levels, 1 to 255 sec.
- OS SUPPORT
- WIN 10 IoT, Linux
- Antenne
- 4 x Antenna opening
- Hukommelse
- 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
- Montering
- Option kit for Wall, DIN, Vesa mount
- Luftfugtighed
- 10% to 90%, non-condensing
- Ethernet
- 2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT)
- USB
- 2 x USB 3.0 4 x USB 2.0
- Dimensioner
- 216 mm (8.5") x 137.65 mm (5.41") x 38 mm (1.49")
- Grafik
- 2 x HDMI 1.4b
- Chok/Vibration
- Endurance 3 Grms with SSD (5 to 500 Hz, X, Y, Z directions)
- SIM kort
- 1 x SIM slot
- Storage
- 1 x SATA HDD drive bay (max. up 9.5 mm height)
- Approval
- CE, FCC Class A
- mPCIe
- Interface 2 x Full-size PCI Express Mini Card slot (USB + PCIe)
- Other
- 1 x ATX power switch 1 x ATX/AT quick switch 1 x Reset button 1 x Remote power switch
Intel® Celeron® N3350 2.4 GHz
Fanless
2x HDMI
1x COM
6x USB
2x GbE LANs
2 PCI Express Mini Card slots for WLAN and WWAN
One swappable 2.5" SATA HDD drive bay
Supports Jumbo Frame (9k), WoL, PXE Remote Boot
Suitable for smart retail and light industries
