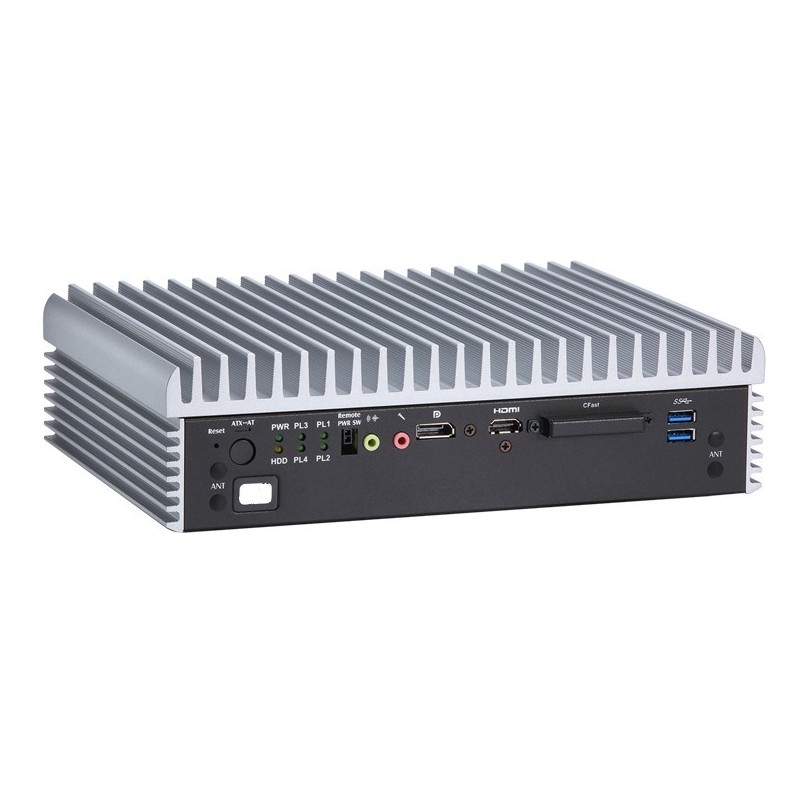

Embedded PC i3/i5/i7, Celeron, 2 x HDMI, 1 x DP, 4xGbit, 6 USB 6th/7th Gen. CPU

Product code: EPC-IX-GEN7

6th/7th Gen. i3/i5/i7 cpu support
Max. 32GB RAM
4x RS232/422/485
6x USB 3.0
2x USB2.0
2x 2.5" SATA HDD (RAID0/1 support)
9-36VDC

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    Build To Order
    Vi kan levere med fuld bestykning.

    Kontakt salg vedr. pris på komplet konfiguration af PC.
    Andre modeller haves.

    EPC-IX-GEN7

    Data sheet

    Weight
    3.8 kg (8.37 lb)/ 4.6 kg (10.14 lb)
    CPU
    LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35 W)
    Forsyning
    9~36VDC
    Udgange
    2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b) 1 x DisplayPort
    Driftstemperatur
    -40°C ~ +60°C (-40°F ~ +140°F) (with W.T. SSD, CPU TDP 35W)
    Porte
    4 x RS-232/422/485
    Watchdog
    255 levels, 1 ~255 sec.
    OS SUPPORT
    WE8S, WES7, Win10 IoT, Linux
    Hukommelse
    2 x 260-pin SO-DIMM DDR4-2133, up to 32 GB
    Lyd
    Mic-in/Line-out
    Montering
    OPTION: Wall mount DIN-rail VESA mount not included
    IP-Tæthed
    IP40
    Ethernet
    4 x 10/100/1000 Mbps (Intel® i210IT, i219LM)
    USB
    6 x USB 3.0 2 x USB 2.0
    Digital I/O
    32-channel programmable DI/DO
    Dimensioner
    280 x 190 x 70 mm (11.02” x 7.48” x 2.75”)
    Materiale
    Aluminum extrusion and heavy-duty steel
    Chok/Vibration
    3 Grms with CFast™ (5 - 500 Hz, X, Y, Z directions)
    Udvidelser
    2 x Full-size PCI Express Mini Card (USB + PCI Express signal) 1 x SIM slot
    Storage
    2 x 2.5" SATA HDD with RAID 0&1 1 x CFast™ 1 x mSATA
    Other
    4 x SMA type connector opening for antenna 1 x 9~36VDC power input connector 1 x ATX power switch 1 x Remote power switch 1 x AT/ATX quick switch 1 x Reset button
