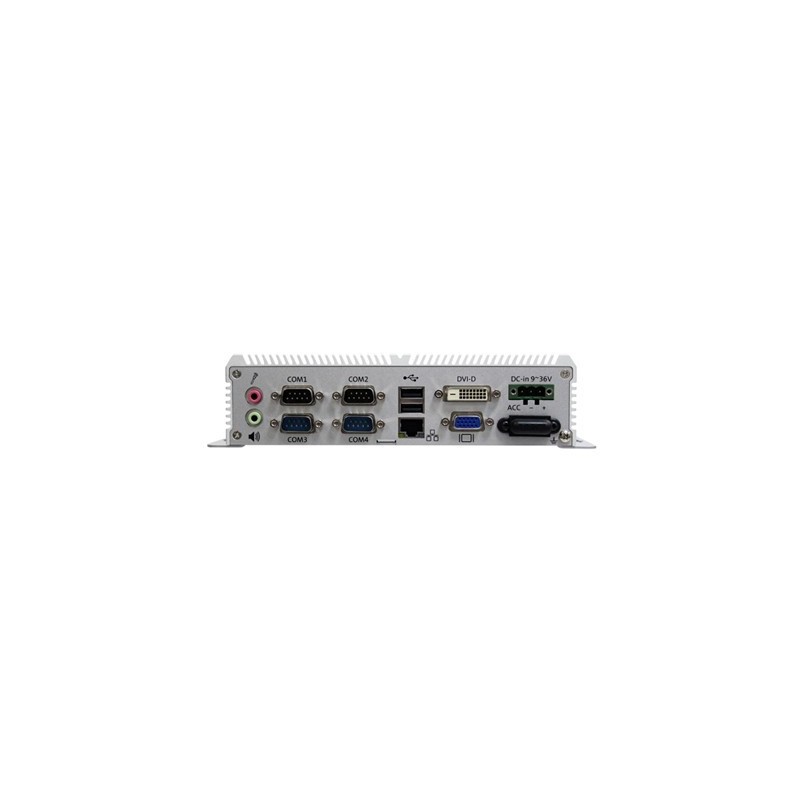

Embedded PC Atom 1.91GHz, Udvidet temperatur område -40°C~70°C

Data sheet

CPU

Soldered onboard Intel®Atom™ processor E3845 quad-core

Forsyning

DC 9~36V input, w/ 3-pin terminal bolck Power Consumption Max. 30W

Udgange

1 x DVI-D female connector, rear side 1 x VGA with DB15 female connector, rear side

Porte

2 x RS-232/485 ports w/ DB-9 connectors, rear side 2 x RS-232 ports w/ DB-9 connectors, rear side

Chipset

Intel Atom™ processor E3845

Watchdog

1~255 levels reset

SATA

1 x Serial ATA port with 300MB/s HDD transfer rate

Hukommelse

1 x 204-pin SO-DIMM socket, supporting DDR3L 1066/1333 MHz, up to 8GB SDRAM

Lyd

2 x 3.5mm phone jacks for Line-out & MIC-in (2W pre-amplified), rear side

Montering

Wall mount

Temperatur

Operating Temp. -40°C ~ 70°C (-40°F ~158°F ), ambient w/ air flow, w/SSD Storage Temp. -40°C ~85 °C (-40°F ~ 185°F)

Luftfugtighed

5% ~ 95% @ 70°C (non-condensing)

Ethernet

1 x Intel® i210IT GbE PHY controller RJ45

USB

1 x type A USB 3.0 port, front side 2 x type A USB 2.0 ports, rear side

Digital I/O

1 x 8-bit digital I/O, 4-in/4-out w/ DB-15 Male connector, 2KV isolated protection, front side

Dimensioner

(W x H x D) 200 x 55 x 180 mm (7.87” x 2.17” x 7.09”)

Grafik

Integrated Intel® HD Gen. 7 Graphics

Udvidelser

1 x Mini-PCIe slot for optional WiFi/Bluetooth module 2 x Mini-PCIe slot interconnected with SIM card sockets for optional HSUPA/LTE module 2 x SIM sockets (outside accessible)

Storage

x 2.5" drive bay for SSD 1 x mSATA 1 x outside accessible SD socket with cover

Approval

CE, FCC Class A, E13 Mark

Msata

1 x mSATA

WiFi/WLAN

802.11 a/b/g/n Wireless LAN Mini-card (optional)
