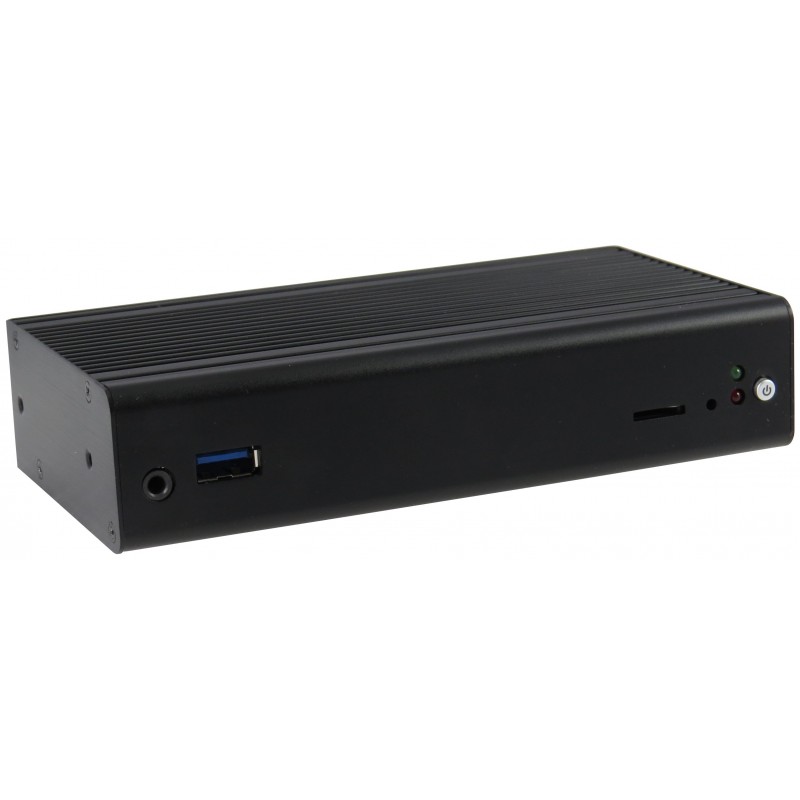

Fanless BOX PC with BayTrail Atom E3825 processor. Wide Temp. –20 ° C to 70 ° C
Product code: IPC-BT-WT
DANBIT A/S tilbyder at levere PCér i alle formater.
Da det er "Build to order" vil man ikke kunne se om de er på lager. Kontakt derfor vores salgsafdeling vedr. Leveringstid.
Andre modeller og versioner kan tilbydes.
IPC-BT-WT
1 Item
Data sheet
- CPU
- Intel® BayTrail SoC Processor, Atom™ E3825
- Forsyning
- DC 12V Input, DC jack
- Driftstemperatur
- Support wide temperature range, from –20°C to 70°C
- Porte
- 1x COM (with RS-232/422/485 )
- BIOS
- AMI uEFI BIOS 1x 64Mb SPI flash ROM
- Netværk
- 1x GbE LAN, RJ45
- OS SUPPORT
- win 8
- Hukommelse
- DDR3L 1333 MT/S SO-DIMM up to 4GB
- Lyd
- 1x Audio Jack for Line-out & MIC-In
- Temperatur
- Operating: -20°C to 70°CStorage: -20°C to 80°C Humidity: 0% to 90%
- USB
- 2x USB2.01x USB 3.0
- Dimensioner
- 150.6 x 80.8 x 33mm ( W x D x H )
- Grafik
- 1x HDMI1x VGA
- Køling
- Fanless
- Udvidelser
- 1x mSATA1x Micro SD Card Cage1x mini PCIe
- Other
- 2x Antennas output.(no antenne)
Barebone
Intel® BayTrail Atom™ E3825
DDR3L Max. 4GB
1 x mSATA,Micro SD, MiniPCIe
1 x HDMI,1xVGA
3 x USB2.0
1 x GbE LAN
1 x COM
–20°C to 70°C
