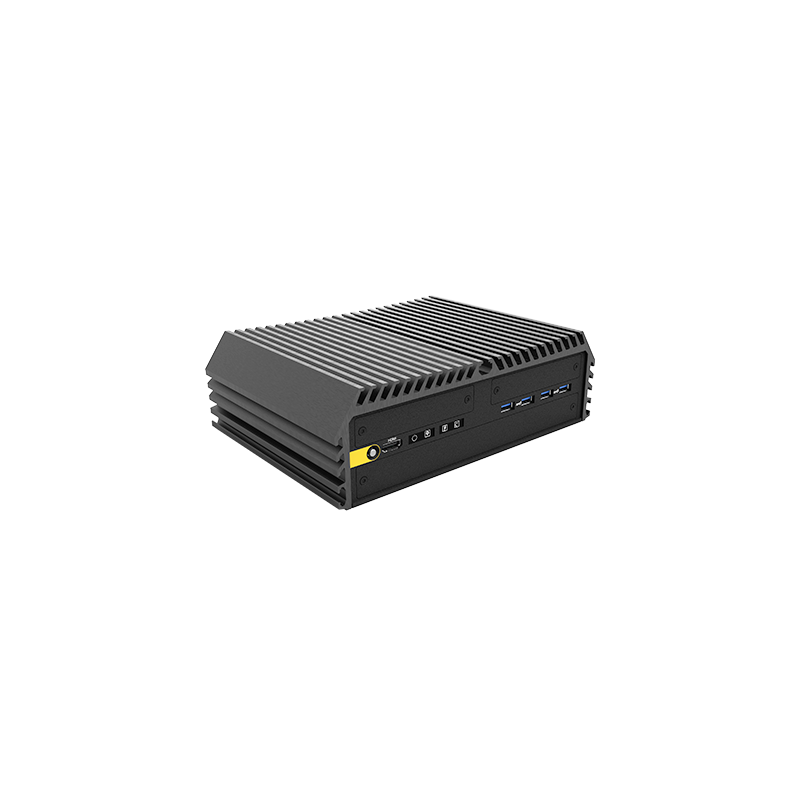

Powerful and compact embedded PC for 12th gen Intel® CPU (MAX 65W TDP)
Product code: EPC-GEN12-WT
EPC-GEN12-WT
Data sheet
- Weight
- 3.05 kg
- CPU
- Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
- Forsyning
- 9 - 48VDC, 3-pin Terminal Block
- Driftstemperatur
- • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 50°C (With External Fan Kit)
- Montering
- Wall / DIN-RAIL / VESA / Side Mount
- USB
- 4x 10Gbps USB 3.2 Gen2, Type A, 4x 5Gbps USB 3.2 Gen1, Type A
- LAN
- 2x 1GbE LAN, RJ45(Supports Wake on LAN, PXE)
- Dimensioner
- 242 x 173 x 75 mm
- Chok/Vibration
- MIL-STD-810G
- RAID niveau
- Support RAID 0/1/5/10
- Msata
- 2x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
- Video
- Quad Independent Display (HDMI / DP / DVI-I)
- M.2
- 1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module
- SSD
- 2x 2.5" SATA HDD/SSD Bay (SATA 3.0)
- Serial Porte
- 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
- RAM
- 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB
Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 CPU's (max 65 W TDP)
2 x DDR5 SO-DIMM Up to 64GB RAM
HDMI / DP / DVI-I
2x 1GbE LAN
4x RS-232/422/485
2x 2.5" SATA HDD/SSD Bay
1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
Optional I/O Module Expansion
Optional Power Ignition Sensing & PoE Function
DC input 9 - 48VDC, 3-pin Terminal Block
Wide Operating Temperature -40°C to 70°C
Certification: UL, c-UL, CB, IEC, EN 62368-1
