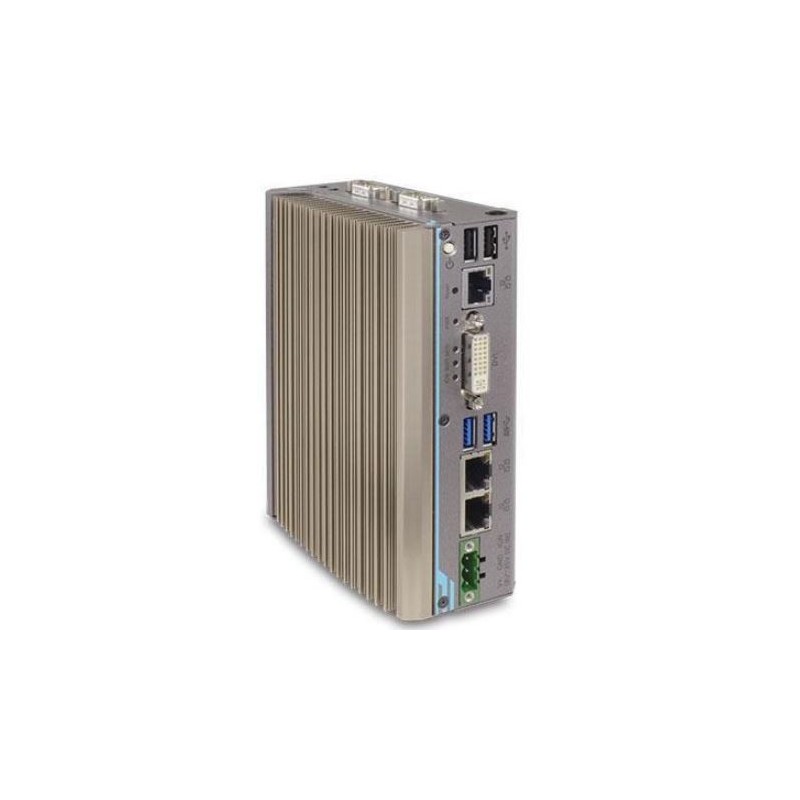

Industrial Fanless Mini PC, DIN mount Pentium® N4200 1.1 / 2.5 Ghz Quad core, 3 x Gigabit LAN, 8 ~ 35 VDC
Product code: EPC-N4200-DIN+
Robust Industrial Pc for your Rail Mount
is best in our series of industrial Fanless Embedded PC solution.
Vibration Operating, 5 GRMS, 5-500 Hz, 3 AXES (W / SSD, According to IEC60068 -2-64) Shock Operating, 50 GRMS, HALF-SIN 11 MS DURATION (W / SSD, ACCording to IEC60068-2-27). Comes with standard SSD / HDD / MAATA. Special SSD / MSATA must be used at Chock / Vibration Inform this by demand!
EPC-N4200-DIN+
1 Item
Data sheet
- Weight
- 0.96Kg
- CPU
- N4200 Quad Core 1.6/2.0 GHz
- Forsyning
- 1x 3-pin pluggable terminal block for 8~35VDC DC input
- Driftstemperatur
- -25°C ~ 70°C med SSD, -10°C ~ 50°C med HDD
- Porte
- 1x DVI-I
- SATA
- 1x half-size mSATA port, 1x SATA port till 2.5" SSD/ HDD
- Hukommelse
- 1x DDR3L-1866, op till 8GB
- Lyd
- 1x speaker-out, 1x microphone-in
- Luftfugtighed
- 10%~90% , non-condensing
- Ethernet
- 3x Gbit by intel I210 GBE controller (2 support POE+ Type2)
- USB
- 2x USB 3.0 2x USB 2.0
- Dimensioner
- 56 x 108 x 153 mm
- Grafik
- Integrated Intel® HD Graphics 505
- Chok/Vibration
- Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
- Approval
- CE/FCC Class A, according to EN 55022, EN55032 & EN 55024
- SSD
- Msata, 2.5"ssd mount need to be ordered special.
Intel® Apollo Lake Pentium® N4200 quad-core processor
3x Gigabit Ethernet ports Intel® I210 GbE
1x Software prog. RS232 / 422/485 (COM1)
1x RS-422/485 port (COM2) or option: 3x 3-wire RS-232 ports
2x USB3.1 Gen.1
2x USB2.0
1x DVI-I
1x Mini-PCIe full-size (USIM Socket)
1x mSATA half-size (storage)
Option: 2½ "SSD / HDD mount
DIN-Rail standard (wall mount option)
-25 ° C to 70 ° C
5.6 x 15 x 11 cm
