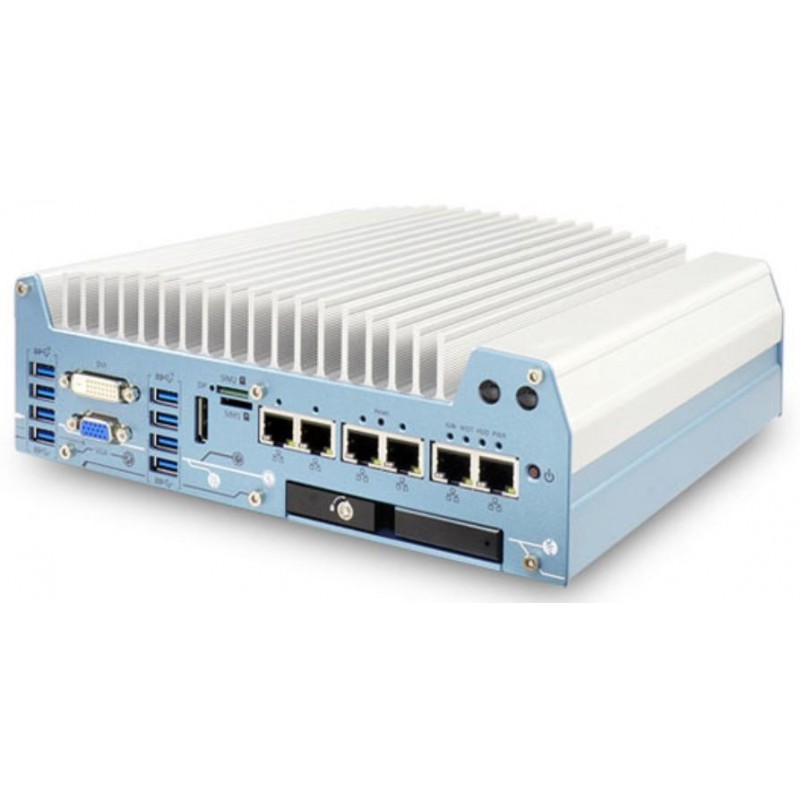

Intel® 8th-Gen Coffee Lake Core™ i7/ i5/ i3 Fanless Computer with 2xGbE Ports, TPM support Low-profile Chassis
Product code: EPC-IXGEN8
Introducingrugged fanless embedded computers, the new EPC-IXGEN8 series, powered by Intel® 8th-Gen Core™ i processors with up to 6-core/ 12-thread architecture that offer a significant performance improvement over previous 6th or 7th-Gen platforms.
EPC-IXGEN8features the same level of ruggedness and versatility in a 79mm low-profile chassis. In addition to effective fanless design, EPC-IXGEN8 series features one front-accessible, hot-swappable HDD/ SSD tray which can be configured as RAID 0/1 when combined with the internal SATA port. It also leverages cutting-edge M.2 NVMe SSD technology for over 2000MB/s disk read/ write speed, or install an Intel® Optane™ memory for the ultimate system acceleration.
EPC-IXGEN8 series consolidates the latest Intel hexa-core CPU, high-speed I/O interfaces, super-fast disk access and flexible storage configuration to form a high-performance ruggedized embedded computer. I/O nterface to add on modules for application-specific I/Os.
Supporting Intel® 8th-Gen Coffee Lake CPU (LGA1151 socket, 35W/ 65W TDP)
- Intel® Core™ i7-8700/ i7-8700T
- Intel® Core™ i5-8500/ i5-8500T
- Intel® Core™ i3-8100/ i3-8100T
- Intel® Pentium® G5400/ G5400T
- Intel® Celeron® G4900/ G4900T
EPC-IXGEN8
Data sheet
- Weight
- 3.1 Kg
- CPU
- Supporting Intel® 8th-Gen Coffee Lake 6-core CPU (LGA1151 socket, 35W/ 65W TDP) - Intel® Core™ i7-8700/ i7-8700T - Intel® Core™ i5-8500/ i5-8500T - Intel® Core™ i3-8100/ i3-8100T - Intel® Pentium® G5400/ G5400T - Intel® Celeron® G4900/ G4900T
- Forsyning
- 1x 3-pin pluggable terminal block for 8~35VDC DC input
- Udgange
- 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
- Driftstemperatur
- with 35W CPU -25°C ~ 70°C ** with 65W CPU -25°C ~ 70°C */** (configured as 35W TDP) -25°C ~ 50°C */** (configured as 65W TDP)
- Porte
- 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
- Chipset
- Intel® Q370 Platform Controller Hub
- PoE
- non
- Hukommelse
- Up to 64 GB DDR4 2666/2400 SDRAM (two SODIMM slots)
- Lyd
- 1x 3.5 mm jack for mic-in and speaker-out
- Montering
- Wall-mounting (standard) or DIN-Rail mounting (optional)
- Luftfugtighed
- 10% ~ 90% , non-condensing
- Ethernet
- 2x Gigabit Ethernet ports by I219 and I210
- USB
- 4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports
- Digital I/O
- Optional ! NON IN STANDAR DELIVERY !!
- Dimensioner
- 240 mm (W) x 225 mm (D) x 79 mm (H)
- Grafik
- Integrated Intel® UHD Graphics 630
- Chok/Vibration
- Vibration Operating, MIL-STD-810G, Method 514.6, Category 4 Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-I
- RAID niveau
- RAID 0/1
- Udvidelser
- 1x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD or Intel® OptaneTM memory installation
- Storage
- 1x front-accessible, hot-swappable 2.5" HDD/SSD tray 1x internal SATA port for 2.5" HDD/SSD installation, supporting RAID 0/ 1
- Approval
- CE/FCC Class A, according to EN 55032 & EN 55024
- mPCIe
- 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
- Other
- AMT Supports AMT 12.0 TPM Supports TPM 2.0
Intel® 8th-Gen Core™ i hexa-core 35W/ 65W LGA1151 CPU
Max. 64GB RAM
Intel Q370 Chipset
Intel UHD 620 Graphics
XLow-profile chassis with hot-swappable 2.5" HDD/ SSD tray
Rugged,
4x COM port (2x RS232, 2x RS232/422/485)
2x GigE ports, supporting 9.5 KB jumbo frame
M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
VGA/DVI/DP triple independent display, supporting 4K2K resolutionwide
Temperature range from -25°C to 70°C fanless operation
