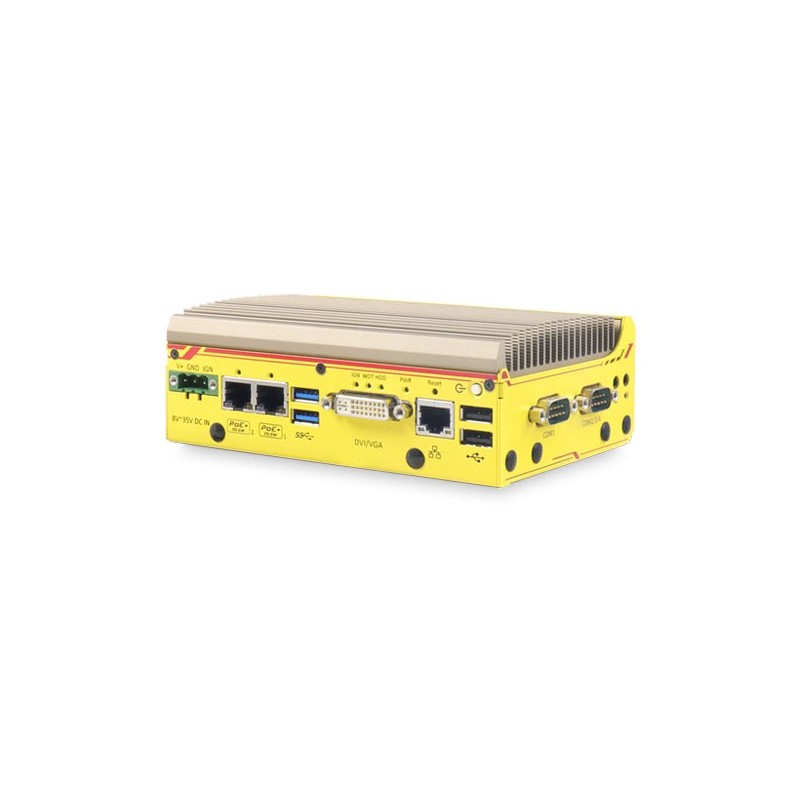

Industry PC for vehicles, Intel Apollo, 4XCOM, 4xDI / DO

Product code: EPC-E3950-DIO

Intel® Apollo Lake Atom ™ E3950 quad-core processor
4-CH isolated DI and 4-CH isolated DO
8 ~ 35V DC input
Operating temp: -25 ° C to 70 ° C

1x DDR3L-1866, up to 8GB

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    Ultra-compact, fanless PC for vehicle communication.

    EPC-E3950-DIO

    Data sheet

    CPU
    Intel® Atom™ E3950 1.6/2.0 GHz quad-core processor
    Driftstemperatur
    -25°C ~ 70°C
    Interface
    1 x Isolated CAN 2.0 port
    Porte
    3x Gigabit Ethernet(2xPoE), 2XUSB3.0,2XUSB3.0
    SATA
    1x half-size mSATA port
    Input
    8~35 VDC DC input
    Hukommelse
    1x DDR3L-1866, op till 8GB
    Lyd
    1x speaker-out og 1x microphone-in
    Luftfugtighed
    10%~90%
    Mål og vægt
    56x108x153mm / 0,96kg
    Digital I/O
    4xDI/IO
    PCI
    3x full-size mini PCI Express
    Grafik
    Integrated Intel® HD Graphics 505
    Video
    VGA, DVI
