Embedded PC med MiniOS7, GSM/SD læser, datalogning

Product code: M485-PC-ETH-G-I

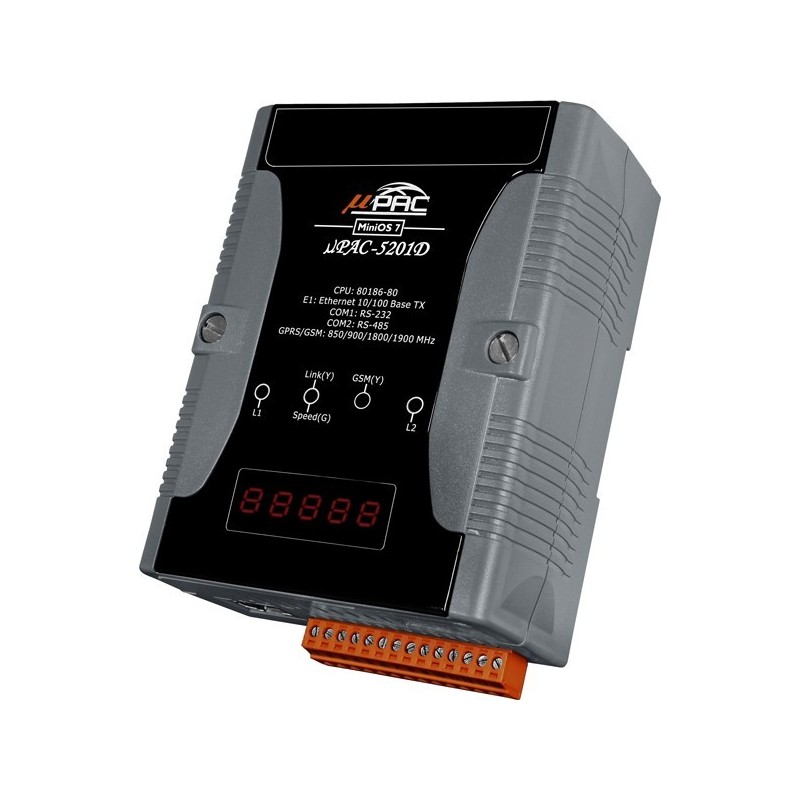

ICP DAS UPAC-5201D. Embedded PC LAN og 2G (GPRS) Inkl. MiniOS7
80186, 80 MHz CPU
1 x 10/100 Base-TX Ethernet
1 x RS-232
1 x RS-485
512 KB Flash/ 16 KB EEPROM/ microSD/ 256 MB NAND Flash Disk
64 bit
Til DIN-skinne montering
Forsyning 12-48VDC, 2,5W
Driftstemperatur: -25 til +75°

  • Add to Comparison Remove from Comparison
    • 1,271.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    M485-PC-ETH-G-I
    1 Item

    Data sheet

    CPU
    80186, 80 MHz
    Forsyning
    12-48VDC, 2,5W
    Driftstemperatur
    -25 ~ +75°C
    Porte
    EthernetRJ-45 x 1, 10/100 Base-TX, COM 1 RS-232 (TxD, RxD, RTS, CTS, GND), COM 2 RS-485 (Data+, Data-).
    Watchdog
    Yes (0.8 second)
    LED
    5-digit 7-segment LED display for (D) versions
    OS SUPPORT
    MiniOS7 (DOS-like embedded operating system)
    Hukommelse
    SRAM 512 KB Flash 512 KB microSD Expansion Yes, up to 32GB micro SD cards are supported NAND Flash Disk - 256 MB
    Dimensioner
    91 mm x 123 mm x 52 mm
    ESD
    ESD Protection
    Other
    I/O Expansion Bus Yes (for one XW-Board only)
