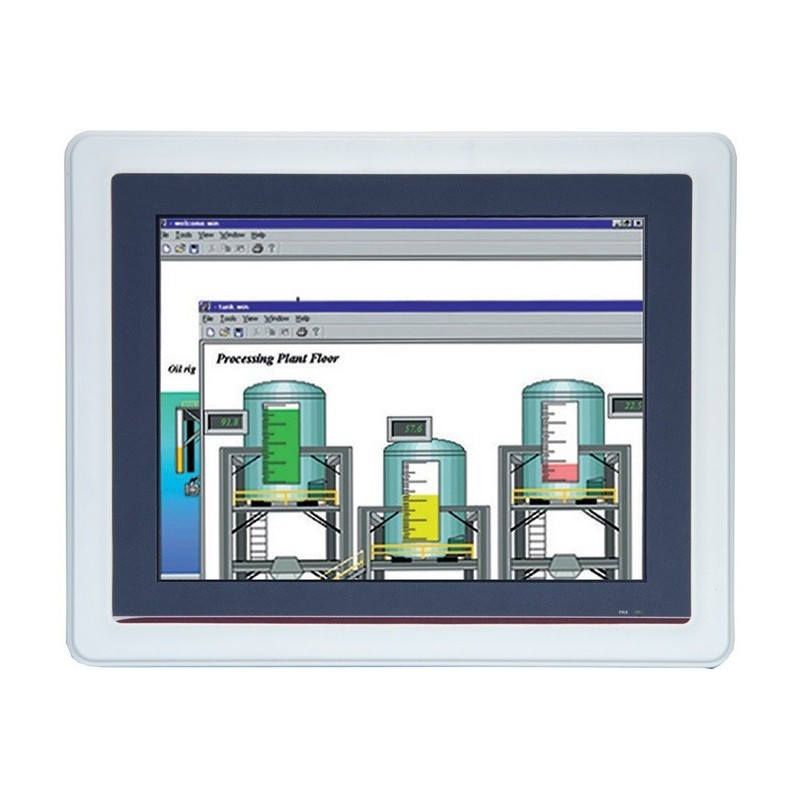

10.4" Panel pc 1.6GHz 2xLAN 2xRS232 4xUSB Touch IP65 front

Product code: IPP10.4

10.4" XGA/SVGA TFT LCD display with LED backlight
Resistive Touch
Intel® Celeron® processor N3060
2 Gigabit LAN, 4 USB and 2 COM ports
1 x 204-pin SO-DIMM DDR3L-1600 MHz, up to 8 GB
1 x RS-232
1 x RS-232/422/485
2 x USB 2.0
2 x USB 3.0
IP65 front

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    Andre modeller og størrelser tilbydes. Kontakt vores salgsafdeling.
    Vi kan tilbyde Panel PCér komplet med OS, RAM, SSD installeret.

    IPP10.4

    Data sheet

    Weight
    (net/gross) 1.8 kg (3.96 lb)/3 kg (6.61 lb)
    CPU
    Intel® Celeron® processor N3060 (up to 2.48 GHz)
    Forsyning
    DC version: 24 VDC with over current protection fuse (option! AC version: 100~240V AC-DC 60W power adapter need toorder special)
    Driftstemperatur
    Operating Temperature 0°C ~ +50°C (+32°F ~ +122°F) (with W.T. DRAM/HDD in airflow condition) 0°C ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM/HDD)
    Porte
    1 x RS-232 1 x RS-232/422/485
    BIOS
    AMI
    Watchdog
    255 levels, 0~255 sec.
    Hukommelse
    1 x 204-pin SO-DIMM DDR3L-1600 MHz, up to 8 GB
    Lyd
    Line-out
    Montering
    Panel mount Wall mount VESA arm Desktop stand
    IP-Tæthed
    IP65, NEMA 4 rugged protection, plastic front bezel
    Ethernet
    2 x 10/100/1000 Mbps (Intel® i211AT)
    Dimensioner
    (W x D x H) 292.5 x 45.8 x 235.8 mm (11.52" x 1.80" x 9.28")(W x D x H) 292.5 x 45.8 x 235.8 mm (11.52" x 1.80" x 9.28")
    LCD
    10.4" XGA/SVGA TFT LCD with LED backlight 350 nits (XGA) 400 nits (SVGA) 1024 x 768 (XGA) 800 x 600 (SVGA)
    Chok/Vibration
    2G, 5~500Hz, random for SSD
    Touch
    Resistive Type
    Udvidelser
    1 x Full-size PCI Express Mini Card with mSATA 1 x Full-size PCI Express Mini Card with SIM slot
    Storage
    1 x 2.5" SATA HDD 1 x mSATA
    Other
    1 x HDMI output
