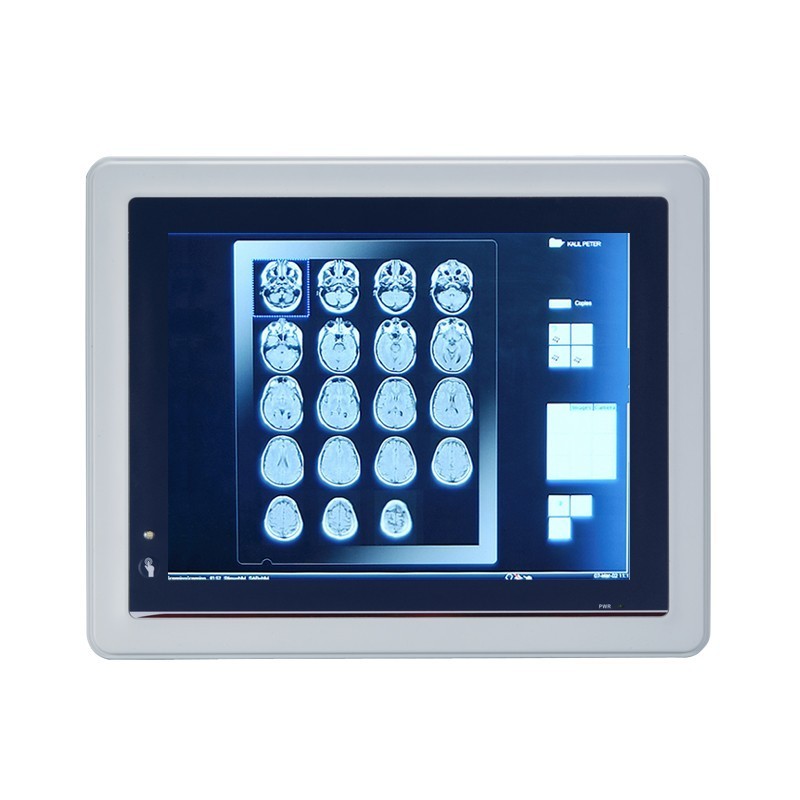

10.4 Panel PC medico godkendt EN 60601-1

Product code: IPP10.4MEDIC

10.4 "XGA TFT LCD display with LED backlight
Intel® Celeron® processor N3060
2 Gigabit LAN to 4 USB
two COM ports, you can choose RS-232/422/485 in the BIOS
Plastic
Front IP65 close
available with support for RFID (optional)
Vesa mount, wall mount desk stand
Meets 4th EN 60601-1 (ESD contact 8KV, air 15kV)
CE, FCC certified

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    IPP10.4Medic is powered by Intel® Celeron® processor N3060 with fanless and silent operation. 10.4-inch XGA TFT LCD with resistive touch and 350 nits brightness. IPP10.4Medic is certified for medical applications and is designed to be integrated with care vehicles and medical devices as a terminal for care or infotainment terminal. IPP10.4Medic meets the requirements of the latest version of EN 60601-1. Its mechanical design has passed the ESD immunity test with 15 kV air discharge and 8 kV contact discharge to ensure operational safety in the challenging health environment. In addition, its lightweight and ultra-thin design with a thickness of 45.8 mm provides excellent space efficiency and greatly improves mobility and flexibility. Because of its fanless design, the 10.4 "medical PC offers reliability, zero maintenance cooling costs, and proves valuable for noise-sensitive environments such as the patient center, nursing station and clinic

    IPP10.4MEDIC
    2 Items

    Data sheet

    Weight
    1.8KG
    CPU
    Intel® Celeron® processor N3060 up to 2.48 GHz
    Forsyning
    AC version: 100 ~ 240 V AC-DC, 60W power adapter or DC version: 9 ~ 36 VDC with overcurrent protection fuse
    Driftstemperatur
    0°C ~ +40°C (+32°F ~ +122°F)
    Porte
    1 x RS-232 1 x RS-232/422/485 (default RS-232)
    Chipset
    SoC Integrated
    BIOS
    AMI
    Watchdog
    255 levels, 0 ~ 255 sec.
    OS SUPPORT
    Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES7
    Lyd
    Line-out
    Montering
    VESA arm Panel mount Desktop stand
    IP-Tæthed
    IP65, NEMA 4 rugged protection, plastic front bezel
    Ethernet
    2 x 10/100/1000 Mbps (Intel® i211AT)
    Dimensioner
    292.5 x 45.8 x 235.8 mm (11.52" x 1.80" x 9.28") (W x D x H)
    LCD
    10.4" XGA TFT 350 nits 1024 x 768 pixels
    Touch
    Resistive Type
    Udvidelser
    1 x full-size PCI Express Mini Card slot with mSATA slot 1 x full-size PCI Express Mini Card slot with SIM slot
    Storage
    1 x 2.5" SATA HDD 1 x mSATA
    Approval
    EN 60601-1, CE and FCC
