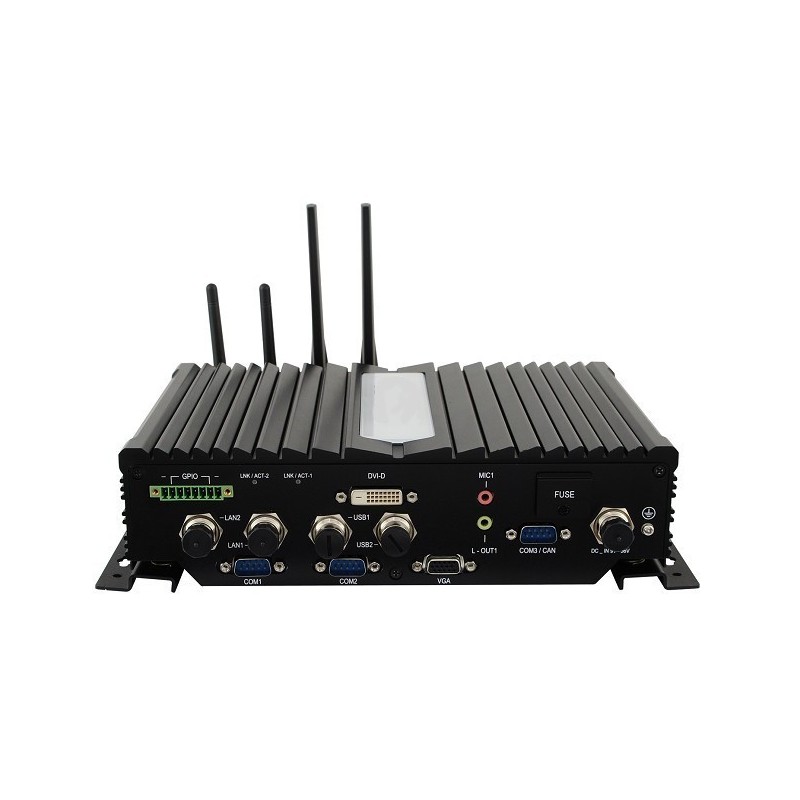

1.91GHz Embedded Fanless PC Atom
Product code: EPT-ATOM-EN50155
Kan levere komplet med RAM og SSD/HDD. Kan levere med anden konfiguration, kontakt salg.
EPT-ATOM-EN50155
Data sheet
- CPU
- Intel® Atom™ Processor E3845
- Forsyning
- DC 9~36V
- Kabinet
- Sort, Aluminium
- Driftstemperatur
- SSD: -40°C ~ 70°C (-40°F~158°F) HDD: -20°C ~ 50°C (-4°F~122°F)
- Porte
- 3 x COM (one with RS422/485 Option) DB9
- Hukommelse
- 2x DDR3L-1333 SO-DIMM dual channel slots
- Lyd
- 1nd Mic-In & Line-Out 2nd Mic-In & Line-Out
- Montering
- Custom mounting rail
- Ethernet
- 2 x Gbe
- USB
- 3 x USB 2.0, 1 x USB 3.0
- Dimensioner
- 256.0 (W) x 182.0 (D) x 55.0 (H) mm 10.08” (W) x 7.17” (D) x 2.16” (H)
- Grafik
- 1x DVI-D, 1x VGA
- SIM kort
- 2 x SIM socket
- Udvidelser
- 1x Half-size Mini PCI-E socket (USB 2.0) 1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E) 1x 2230 Socket 1 M.2 socket (USB 2.0 + PCI-E) 1x 3042 Socket 2 WWAN M.2 socket (USB 2.0) 1x 2280 Socket 3 SSD M.2 socket (SATA)
- Storage
- 2.5” device bay for SSD & HDD
- Certifications
- EN50155: 2007, EN50153:2014 EN50121-3-2:2015, CE class A, FCC class A, EN45545
- Other
- 4x antenna connectors, GPIO
Fanless Design
Intel® Atom ™ Processor E3845, 1.92GHz
Up to 2x 2GB DDR3L-1333 SO-DIMM
M12 plug
1 x USB 2.0, 1 x USB 3.0
1x DVI-D, 1x VGA
2x RS232, 1x RS422 / RS485
EN50155 certified
Optional: Power supply from DC 9v ~ 36V Option: (72V / 110V DC)
Approved for installation on the railway .
