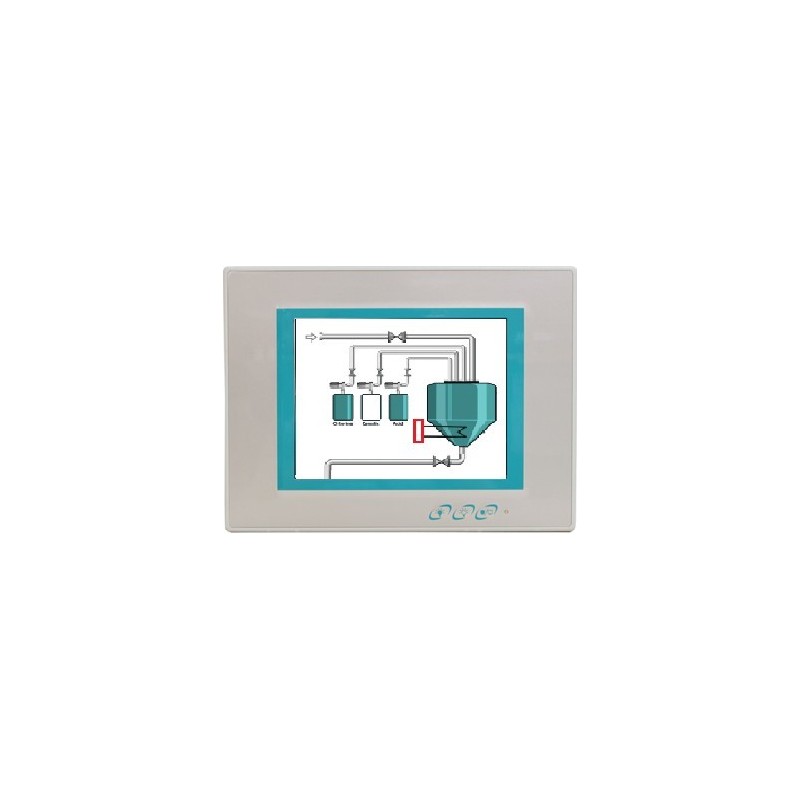

8" panel PC med høj opløsning: 1024 x 768 XGA, Atom™ Processor N2600 1.6GHz

Product code: IPP8N2600

8" LCD, LED backlight
Resolution max. 1024x768
IP65 front

Call For Price

0.00 DKK
Tax excluded
On the way in
Quantity

Build To Order

Kontakt salg vedr. OS, HDD/SSD

Andre modeller og muligheder.

IPP8N2600

Data sheet

Weight
1.93 kg (4.25lb)
CPU
Intel® Atom™ Processor N2600 1.6GHz
Forsyning
DC 12V from Terminal Block or Power over Ethernet from RJ-45 Jack
Porte
2 x RS-232 DB-9 ports
Chipset
Intel® NM10
Watchdog
1~255 levels reset
OS SUPPORT
Windows 7 Professional / Windows Embedded 7 Standard (WS7E)
Hukommelse
2GB DDR3 memory soldered on board
Lyd
Speaker 2 x 1.5W Speaker, 1 x Line-out phone jack
Montering
Wall Mounting and VESA-75/100 Mounting
Skærm
8" TFT LCD Panel Max. Resolution 1024 x 768 (XGA) Max. Colors 16.2M Luminance 300 cd/m², View Angle (U/D/R/L) 75°/75°/70°/70°
Temperatur
Operating Temp. 0 ~ 60ºC (32 ~ 140°F) Storage Temp. -20 ~ 70°C (-4 ~ 158°F)
Luftfugtighed
10 ~ 95% RH @ 60°C (non-condensing)
Ethernet
1 x Intel® 82583V GbE controller
USB
2 x USB 2.0/1.1 Type-A ports
Dimensioner
(W x H x D) 274.96 x 207.96 x 40.0 mm (10.82” x 8.18” x 1.57”)
Grafik
Intel® GMA3600
Chok/Vibration
Vibration 5 ~ 500Hz, 2Grms Random Shock Operating 20G, 11ms
Touch
5 Wire Resistive Single Touch
Udvidelser
1 x mini-card socket for mSATA SSD
Storage
1 x mini card slot for mSATA SSD
Approval
Regulatory CE/FCC Class-B, EMC / EMI CE, FCC Class A
Other
Brightness up/down, Screen on/off, Anti-spark Power Circuit
