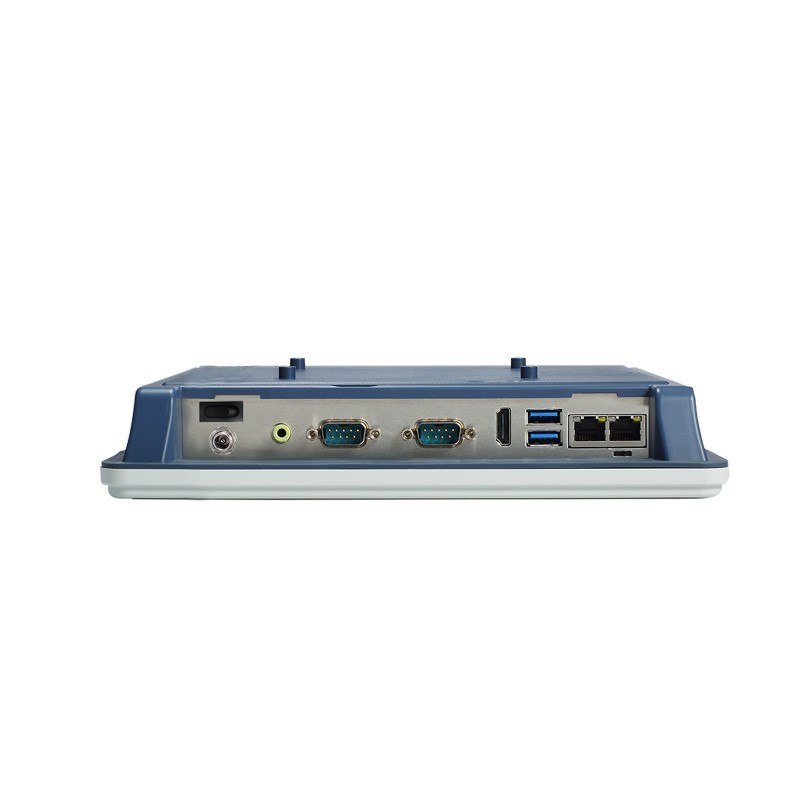

8.4" Panel PC blæserløs, Touch, 2xCOM, N3060(up to 2.48GHz)

Product code: IPP8CELERON

8.4" SVGA TFT LCD, LED backlight
N3060 (up to 2.48GHz) Fanless
2x Mini PCI Express
2x RJ45 Gbit
2x USB
2x COM
IP-65 front
Slim design
Max. 8GB RAM

  • Add to Comparison Remove from Comparison
    • 9,071.00 DKK
    Tax excluded
    On the way in
    Quantity

    Build To Order panel PC.
    Kan levers med OS, RAM og SSD/HDD

    IPP8CELERON

    Data sheet

    Weight
    (net/gross) 1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb)
    CPU
    Intel® Celeron® processor N3060 2 cores (up to 2.48 GHz)
    Forsyning
    9~36 VDC with over current protection fuse Power Consumption 25 W
    Udgange
    HDMI
    Porte
    1 x RS-232 (COM 2) 1 x RS-232/422/485 (default RS-232, COM 1)
    BIOS
    AMI UEFI BIOS
    Watchdog
    255 levels, 0~255 sec
    OS SUPPORT
    Windows® 7 Windows® 8.1 (64-bit) Windows® 10 WES 7 WE8S (64-bit)
    Hukommelse
    204-pin DDR3L-1600 MHz SO-DIMM, up to 8GB
    Lyd
    Audio (Line-out)
    IP-Tæthed
    Front Bezel IP65, NEMA 4 rugged protection, plastic front bezel
    Skærm
    Brightness (cd/m2 ) 350 nits Resolution 800 x 600 Viewing Angel (H/V) 160°/140°
    Temperatur
    Operating temperature: 0° ~ +50°C (+32°F ~ +122°F) (with W.T. DRAM/HDD in airflow condition) 0° ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM)
    Luftfugtighed
    20% ~ 90% @ 40°C; non-condensing
    Ethernet
    2 x 10/100/1000 Mbps Ethernet (Intel® i211AT)
    USB
    2x USB 3.0
    Dimensioner
    250.7 mm (9.87") (W) x 45.8 mm (1.80") (D) x 204.7 mm (8.06") (H)
    Grafik
    Onboard Graphics Integrated in Intel® GFX
    Chok/Vibration
    2G, 5~500Hz, random for mSATA
    Touch
    Resistive Type
    Other
    Optional: Wi-Fi + Bluetooth kit Panel mount kit VESA mount kit Stand kit RFID kit
