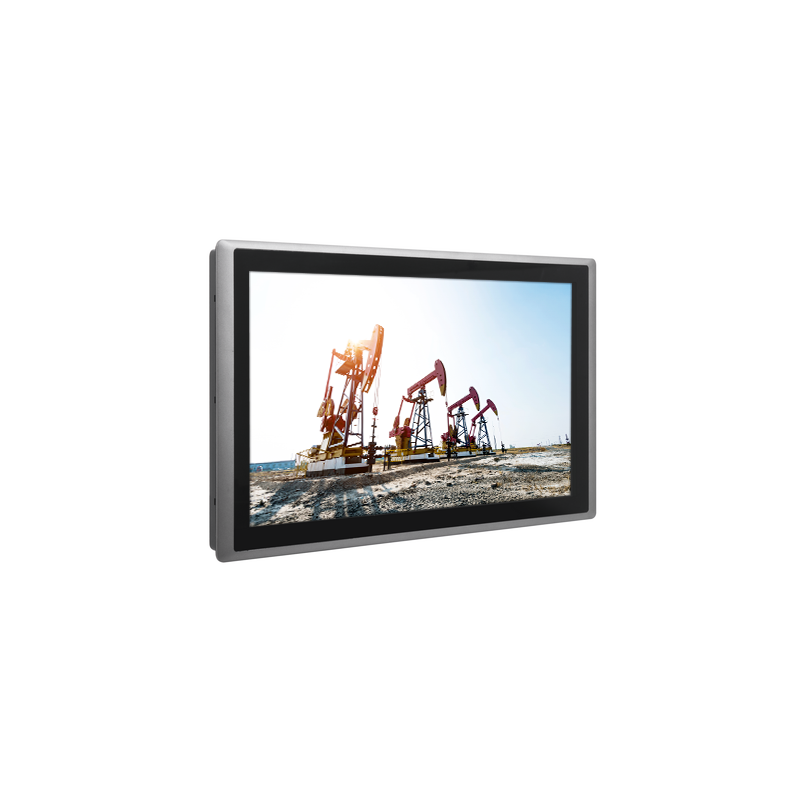

24" TFT-LCD Sunlight Readable, Modular and Expandable Panel PC with 8th Gen. Intel® Core™ U Series Processor
Product code: IPP24-1500-PCAP
Build to Order
24” TFT-LCD sunlight readable panel PC that offers sufficient screen brightness for better image quality in outdoor usage. The panel PC is powered by Intel® 8th generation Core™ U series processor that brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the, is equipped with two DDR4 2400 SODIMM kets for up to 64 GB memory.
For expansion requirements, the Panel PC has 1x PCI/PCIe x4, 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to increase desired functions. Besides, the CS-W124C/P2102E supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the Panel PC is appropriate for tough outdoor applications under direct sunlight.
Furthermore, the Panel PC supports patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.
IPP24-1500-PCAP
Data sheet
- CPU
- i3,i5
- Forsyning
- 9 -48Vdc
- Driftstemperatur
- -20°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow)
- Watchdog
- 1
- OS SUPPORT
- Windows 10
- Antenne
- 4
- Lyd
- Realtek ALC888-GR
- IP-Tæthed
- IP65 Compliant Front Panel
- Skærm
- 24" Full HD TFT LCD 250 1920 x 1080 pixels
- Ethernet
- 2
- USB
- 5
- Dimensioner
- Dimension (WxHxD) 605 x 373 x 95.5 mm
- Grafik
- VGA, DP
- VGA
- 1
- RAID niveau
- 1
- SIM kort
- 1
- VESA standard
- 1
- Approval
- CE, FCC, ICES-003 Class A
- mPCIe
- 2
- M.2
- 1
- SSD
- 2
- PCI Express
- 1
- Serial Porte
- 4
- RAM
- 2 x DDR4 max 64GB RAM
24” TFT-LCD with Ultra-high Brightness up to 1,500 nits
Reolution 1920 x 1080
Onboard 8th Generation Intel® Core™ U Series Processor
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Supports Triple Independent Display
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (with optional CFM module)
Supports 2x PoE+ Function (with optional CFM module)
1x PCI or 1x PCIe Slot for Add-on Card Expansion: Max. Length 180mm including Bracket (with optional riser card)
Wide Range Operating Temperature -20°C to 70°C
Designed with Rugged Aluminum Die-casting Front Bezel
True Flat IP65 Compliant Front Panel Protection
Supports Panel / VESA / Rack Mounting
