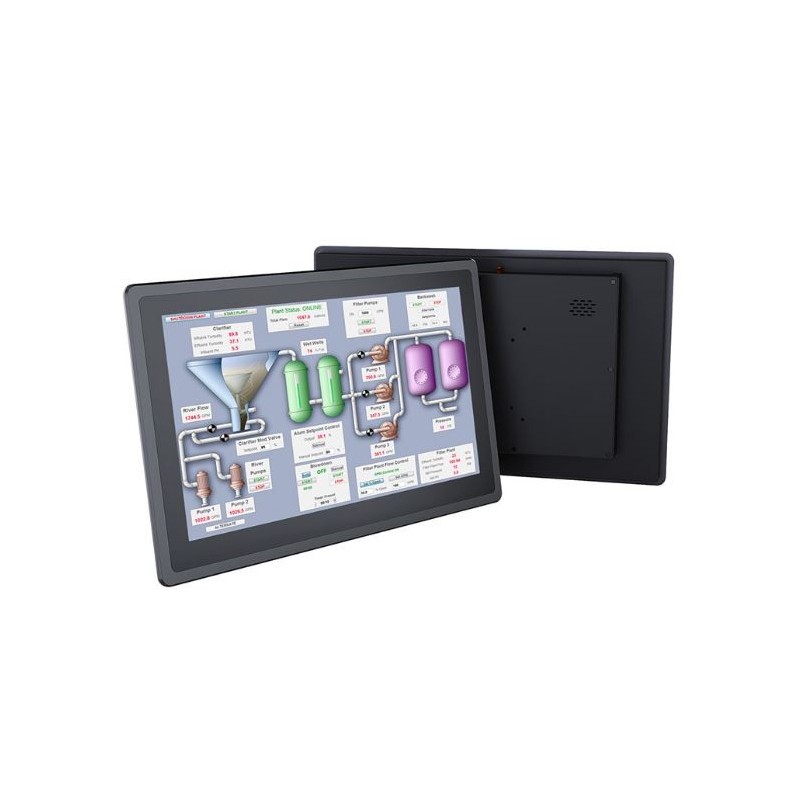

15.6" Panel PC I3, 1000nits, 1920x1080, IP65 front, Multi touch RS232/422/485, 4xUSB, VGA & HDMI output

Product code: IPP15.6I3-1000NITS

15.6" TFT, Resolution 1920x1080
CPU I3-5015U
1000 Nits
Light sensor, (auto dimming on special request)
IP64 front
1xRJ45
2x USB2.0
2x USB3.0
1x RS232/422/485
1x RS232
BT
Wifi
HDMI,VGA output


OS support Windows 10, Linux

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    The Panel PC combine advanced computing power with 15.6” solid displays to provide a modular solution that enables easy customization and simplified upgrading while reducing maintenance costs. It is designed for use in monitoring and controlling production processes in industries obligated to meet high stability standards.
    Flexible I/O Interfaces Panel PC is equipped with 4×USB host ports, 1×LAN 1000M port, RS232 / RS422 / RS485 ports, VGA and HDMI ouput to connect seamlessly with your application

    IPP15.6I3-1000NITS

    Data sheet

    CPU
    i3
    Forsyning
    12VDC
    Udgange
    VGA, HDMI
    Driftstemperatur
    Operating Temp: -10°C~60°C (14°F~140°F)
    OS SUPPORT
    WINDOWS 10; Linux
    Effekt
    ≤45W (≤2.5W when standby)
    Skærm
    15.6
    Ethernet
    1
    USB
    4
    Mål og vægt
    4.06kg
    Grafik
    Intel HD graphics 5500
    Touch
    Multi Point Capacitive touch
    bluetooth
    Yes
    SSD
    120GB
    Nits
    1000
    Dimension
    408mm×259mm×50.5mm
    Resolution
    1920x1080
    Serial Porte
    2
    RAM
    4GB
    WiFi
    2.4Ghz
