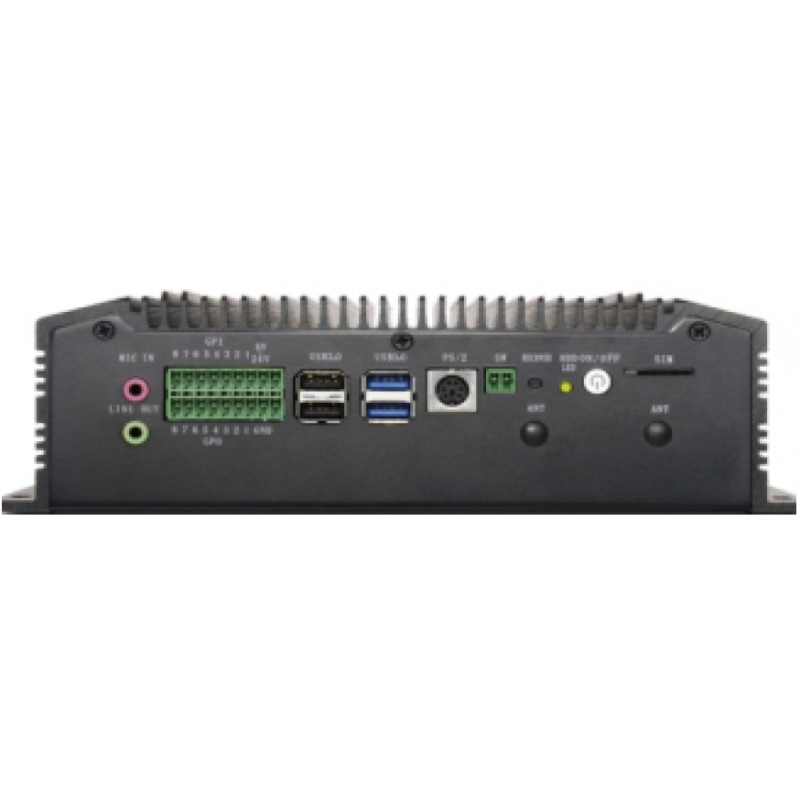

Fanless Embedded PC with Intel® I7 CPU, 9~36 VDC, -20 ~ 60°C, 4x COM, 4x LAN, 4x USB
Product code: EPC-GEN7-POE
EPC-GEN7-POE
2 Items
Data sheet
- CPU
- I7 7500 (i3/ i5 optional)
- Driftstemperatur
- -20℃～60℃ (with air flow)
- Luftfugtighed
- 95% @40℃, non-condensing
- USB
- 4x USB3.0+2x USB 2.0
- Strømforsyning
- 9-36V DC
- LAN
- 4x LAN Intel 1Gbps (2x POE)
- Dimensioner
- 232.5mmx 197.7mmx 66.5mm(W×D×H)
- mPCIe
- 1x Mini PCIe(WIFI/BT/3G/4G optional)
- Video
- 1x VGA，1x HDMI
- SSD
- 1 x Internat 2.5" HDD/SSD
- Serial Porte
- 4x RS2323 (RS422/RS485 optional)
- RAM
- 1xDDR4 2133, Max 16GB
Intel® i7 Gen7 CPU (optional: i3, i5)
1x DDR4 2133, Max 16GB
4x RS2323 (RS422/RS485 optional)
4x LAN Intel 1Gbps (Port 1 & 2 with POE)
4x USB3.0, 2x USB 2.0
Video output: 1x VGA，1x HDMI
Power input: 9~36 VDC
Dimensions: 232.5mmx 197.7mmx 66.5mm (W×D×H)
Operating temperature: -20 ～ 60°C
