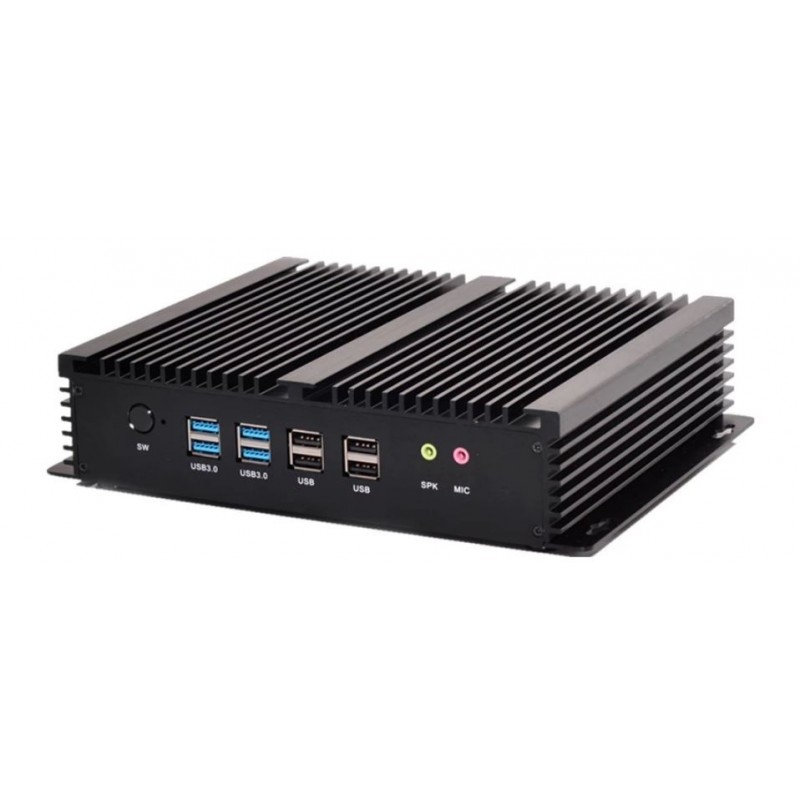

copy of Fanless Mini PC Windows I5 4570 CPU 2xRJ45, 6xRS232, GPIO, SIM, 8 x USB HDMI, VGA
Product code: EPC-I5-2E6S8U2H
One of the small embedded PCs we can offer. Build to order so we bestykker like RAM, SSD and OS so it comes ready to use.
EPC-I5-2E6S8U2H
1 Item
Data sheet
- Weight
- net. 1.8Kg, Gross 2.5
- CPU
- Intel Core i5 LOW POWER
- Forsyning
- 12VDC
- Udgange
- 2x HDMI
- Opløsning
- Support 1920*1080 HD resolution, 32 bit color depth 60Hz
- Porte
- 6x RS232
- OS SUPPORT
- Windows 7/ Windows 8/Windows 10/Linux
- SATA
- 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
- Lyd
- ALC892 HIFI sound chip, 6-channel
- Montering
- Wall-mount, tabel
- Ethernet
- 2 x RJ45 Intel 82583V/82574L PCI-E Gigabit Ethernet NIC 10/100/1000 BaseT
- USB
- 4* USB 3.0 ports; 4* USB 2.0 ports
- Dimensioner
- 234*150*50mm
- Materiale
- Aluminium
- Grafik
- Intel® HD Graphics 4400
- Køling
- Fanless
- Msata
- 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
- mPCIe
- 1 x mini PCIE-half port for Wi-Fi/3G/4G module
- SSD
- 2½" space
- WiFi/WLAN
- OPTION: 300M 802.11.b/g/n+bluetooth
- TDP
- 15W
- Dimension
- 234 x 150 x 50 mm
Fanless
Core i5 3317, 1.7GHz Max. 2.6GHz, Dual core 4 threads
RAM DDR3L max 8GB
Chipset HM 77 Express
TDP 17W
Grafik HD4000 1920x1080 HD
1x HDMI
1x VGA
2x RJ45
4x RS232
4 x USB2.0
4x USB3.0
1x M-SATA
1x SATA til 2½"HDD/SSD
12V dc
OPTION: Wifi
OS Support: WIN XP, WIN 7, WIN 8, WIN10, Linux
CE, FCC & ROHS
