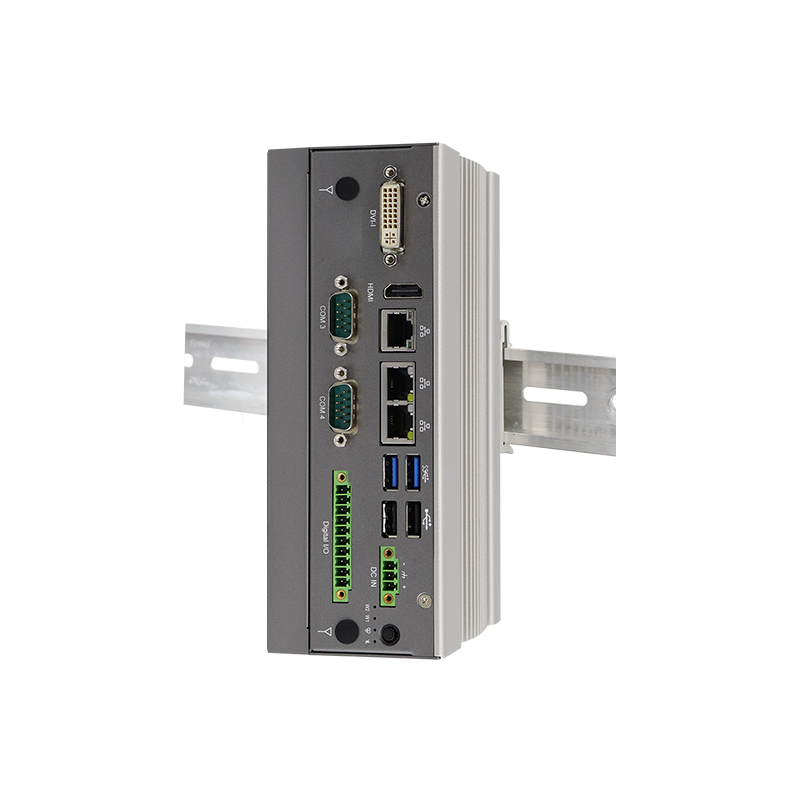

Fanless ATOM PC 2xSIM, DVI, HDMI, 3xEthernet, 4xCOM, -20°C~70°C, DIN or wall mount IOT Gateway delivered up to 15 years
Product code: EPC-ATOM-3E4C4IODIN
Industrial IOT PC. In the series of our Long Life models with long life up to 15 years!. This is only an example of one of them we have. Contact us if there are special requirements. We can supply all PCS ready for use with us, RAM and SSD installed.
EPC-ATOM-3E4C4IODIN
Data sheet
- CPU
- Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP) or as option Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP)
- Forsyning
- 9V-36Vdc, 1x 3-pin DC-in terminal block, 1x power button with Green LED
- Udgange
- 1x DVI-I, 1x HDMI
- Driftstemperatur
- -20°C~70°C (-4°F~158°F)
- Porte
- 4x RS232/422/485
- OS SUPPORT
- Win10 and Linux Ubuntu
- Hukommelse
- 1 x 4GB DDR4-3200 SO-DIMM, Max. 16GB
- Lyd
- 1x Line-out/ Mic-in
- Montering
- DIN-rail mounting (DIN-rail mount kit included) Desktop or wall mounting (wall mount kit included)
- Luftfugtighed
- 5~90% @ 60°C, (non-condensing)
- Ethernet
- 3 x RJ45 2.5G Ethernet port
- USB
- 2x USB 3.1 ports, 2x USB 2.0 port
- Dimensioner
- 218mm(W) x 110mm(D) x 57mm(H) w/ Wall mount kit 8.58”(W) x 4.33”(D) x 2.24”(H)
- Materiale
- Aluminum & steel
- Chok/Vibration
- Vibration Operating: 2.0 Grms / 5~500Hz / random operation (with IEC 60068-2-64) Shock Operating: 30G/11 ms Duration Non-operating: 40G/11 ms Duration
- GPIO
- 1x 4-in & 4-out GPIO
- Approval
- CE/ FCC/ LVD
- mPCIe
- 1x Full-size Mini PCI-E socket (USB 2.0) 1x Full-size Mini PCI-E socket (USB 2.0 + SATA) 1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E)
- M.2
- 1x M.2 B-Key socket (USB 3.0 + PCI-E)
- SSD
- 1x Mini PCI-E slot (mSATA SSD), OPTION! 1x 2.5’’ SSD mount special order!
- Other
- 2 x antenna hole for wlan module (NOT INCLUDED)
Intel® Atom® x6414RE/x6212RE Processors (formerly Elkhart Lake)
GPIO 4-in/4-out & 1x DVI-I & 1x HDMI
1x M.2 B-Key 3052 support 5G module
Optional 1x 2.5’’ SSD (needs to be ordered)
3x 2.5G Ethernet port
3x full-size Mini PCI-E sockets
4x COM (RS232/422/485)
2x USB 3.1 & 2x USB 2.0
Supports DIN-rail mount, wall mount
TPM 2.0
Extended operating temperature from -20°C to 70°C
9V~36V DC wide-range power input Over/Under/Reverse voltage protection
