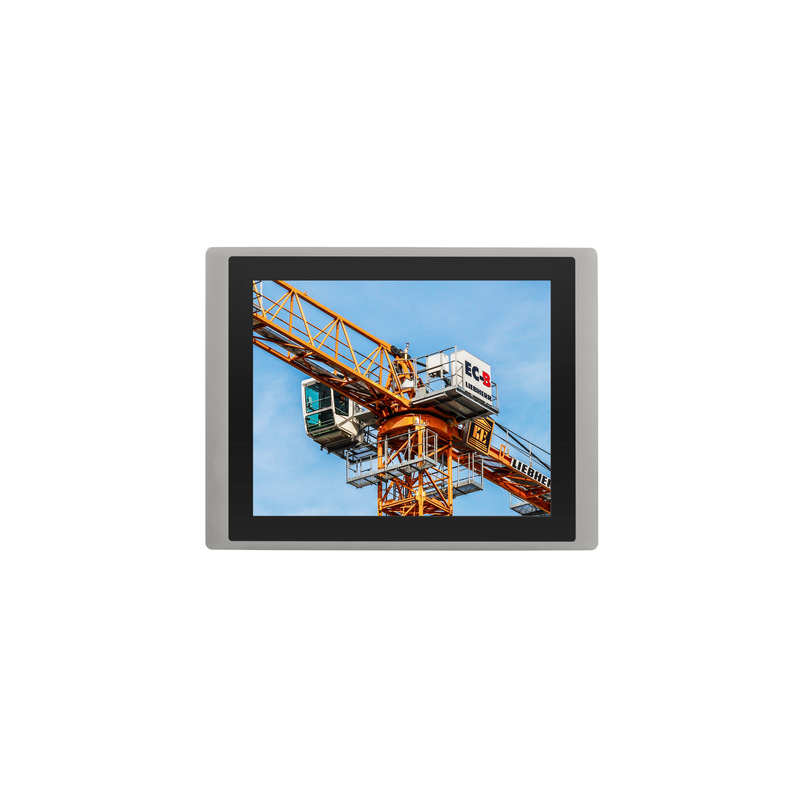

19" High Brightness Modular Panel PC with 8th Gen. Intel® Core ™ U Series Processor
Product code: IPP19-SOL-GEN8-CDS
IPP19-SOL-GEN8-CDS
Data sheet
- Weight
- 9.2 kg
- Forsyning
- 9~48VDC via 3-pin Terminal Block
- Driftstemperatur
- -20°C to 70°C
- Porte
- 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
- Lysstyrke
- up to 1,600 nits
- Netværk
- 2x GbE LAN, RJ45 - GbE1: Intel I219LM - GbE2: Intel I210
- OS SUPPORT
- Windows® 10, Linux: Supports by project
- Hukommelse
- 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket Supports up to 64 GB (un-buffered and non-ECC)
- IP-Tæthed
- IP65 Compliant Front Panel
- Skærm
- 19” TFT-LCD
- Dimensioner
- (WxDxH): 510 x 389.3 x 76 mm
- Grafik
- Integrated Intel® UHD Graphics 620
- Kontrast
- 1000 : 1
- Udvidelser
- 2x Full-size Mini-PCIe Socket, 1x M.2 2230 E Key, 1x Front Accessible, 4x Antenna Hole SIM
- DIO
- 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
- Other
- Fanless Design
19” TFT-LCD, 1280 x 1024 (SXGA)
Brightness: 1,600 nits
Intel® Core ™ I3-8145ue Dual Core Processor (standard)
Intel® Core ™ I5-8365 quad Core Processor (option)
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (option)
Wide Range Operating Temperature -20°C to 70°C
Designed with Rugged Aluminum Die-casting Front Bezel
Flat IP65 Compliant Front Panel Protection
Panel / VESA / Rack Mounting
