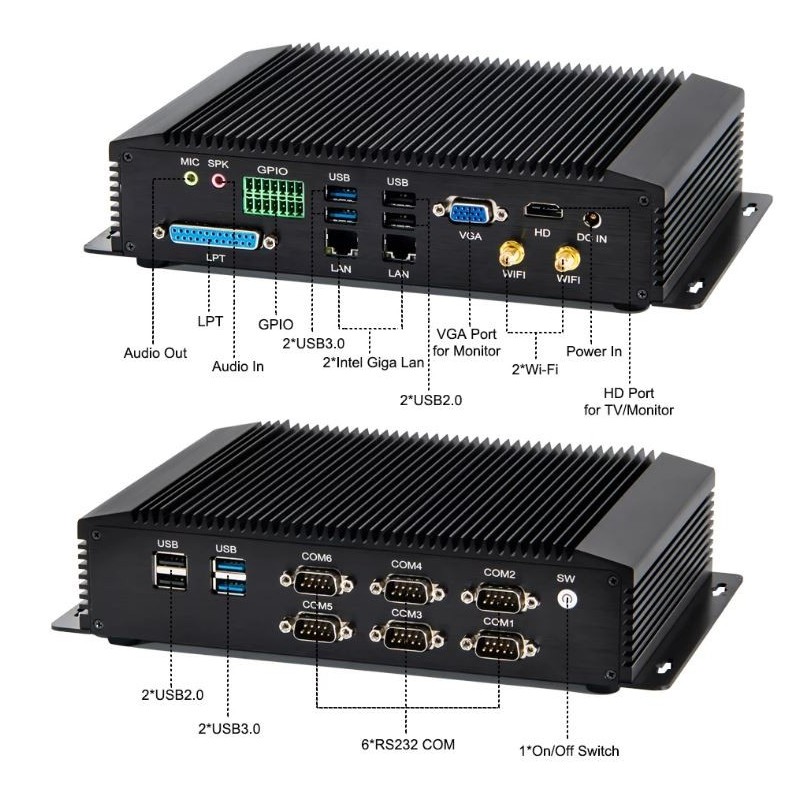

Fanless I5 Embedded PC, 2XRJ45, SIM, HDMI, VGA, LPT, USB, RS232 / 422/485, WiFi
Product code: EPC-I5-6S2L4GW
Robust og stabil Industriel Embedded PC. Kan leveres med Celeron, i3,i5 eller i7 processor. Blæserløst design med alukiniums kabinet der er sørger for god varmeafledning
EPC-I5-6S2L4GW
Data sheet
- Weight
- Net 1.25kg, Gross 2.0kg
- CPU
- Intel Core i5-4200u
- Forsyning
- DC +12V~+19V, recommend 12V/5A
- Udgange
- 1 x VGA, 1 x HD
- Driftstemperatur
- -10/+60Centigrade (32°F~140°F) needs special RAM and SSD
- Porte
- 6 COM, COM1 COM2 can change to RS232/422/485 from BIOS
- Chipset
- Intel SOC
- Watchdog
- Yes
- OS SUPPORT
- Win7/8/10/Linux
- SATA
- 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
- Antenne
- 2 x inner RF cables and 2 x external antennas
- Hukommelse
- 1 x SO-DIMM DDR3L Slot, Support 4GB/8GB DDR3L 1333/1600, LPDDR3 1333/1600
- Lyd
- ALC662 sound chip, 6-channel Intel Lynx Point-LP HD Audio Controller
- Montering
- 4 Mounting holes on case
- Ethernet
- 2xOnboard Intel i213 Gigabit Network Connection 10/100/1000Mbps BaseT LAN PXE
- USB
- 4 x USB2.0, 4 x USB3.0
- Dimensioner
- 230*175*50mm
- Grafik
- Intel Haswell- ULT Integrated Graphics Controller Intel HD Graphics 4400
- SIM kort
- 1x SIM Card slot
- GPIO
- 8 x GPIO by Phoenix type Terminal Block
- Msata
- 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
- mPCIe
- 1 x mini PCIE-half port for Wi-Fi module 1 x mini PCIE-full port for 4G module
- Other
- Watchdog, Auto power on, RTC, Wake-on-LAN
I5 4200U
2 x Intel I213 Gbit RJ45
1 x SO-DIMM DDR3L Slot, Support 4GB/8GB
GPIO
2x Mini PCIe (support WiFi, 4G Module)
LPT
6x Com (2 x RS232/422/485 BIOS select)
HDMI, VGA
8 x USB
Material Aluminum
TPD: 15W
OS Support: Win7, Windows 8, Windows 10, Linux
Auto Power On
230x175x50
