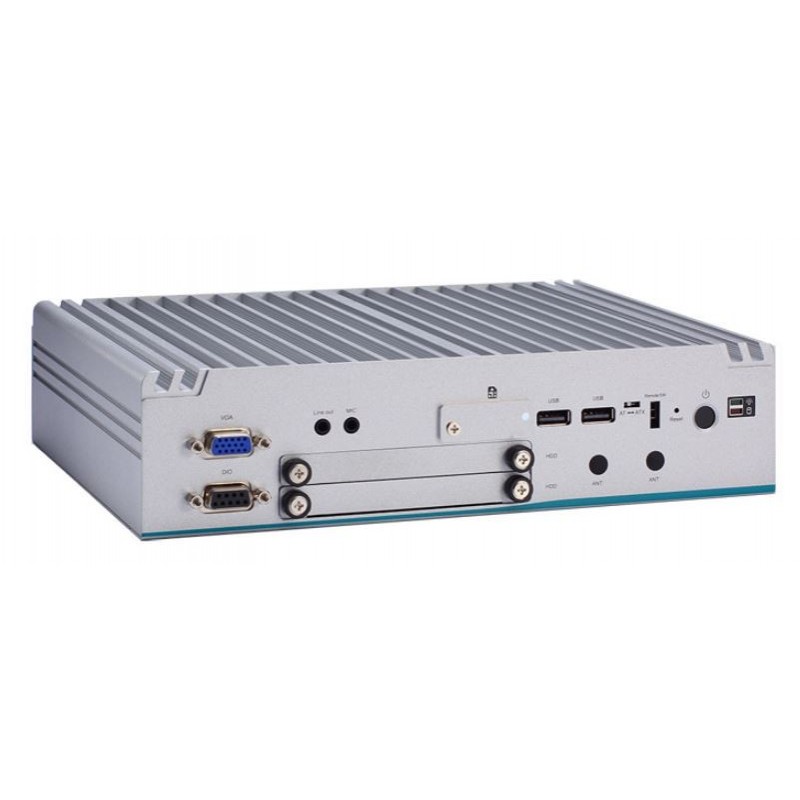

Fanless Embedded PC 8th Gen Intel® Core™ i7/i5/i3 & Celeron® ULT, 2 HDMI, 1 VGA, 3 GbE LAN, 6 USB 9 to 36 VDC -40°C to +70°C
Product code: EPC-IX-2H1V6U3E
Industriel Embedded PC, Kan leveres med Celeron, i3, i5 eller i 7 processor. Udvidet temepratur område! Bemærk standart er allr tilbud med standard ram og SSD. Hvis der ønskes udviddet temepratur område skal det specificeres.
EPC-IX-2H1V6U3E
Data sheet
- Weight
- 1.38kg (no ram no ssd)
- Compositions
- Aluminum extrusion and heavy-duty steel, IP40
- CPU
- Intel® Core™ i7-8665UE/i5-8365UE/i3-8145UE & Celeron® 4305UE (TDP up to 15W)
- Forsyning
- 9 to 36Vdc Phoenix VDC power input connector
- Udgange
- 2 x HDMI (lockable) 1 x VGA
- Driftstemperatur
- -40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow -40°C to +65°C (-40°F to +149°F) with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 15W)
- Porte
- 2 x RS-232/422/485 2 x RS-232
- Chipset
- soc
- BIOS
- AMI
- Watchdog
- 255 levels, 1 to 255 sec.
- OS SUPPORT
- EOS Support Win 10 IoT, Linux
- Antenne
- 4 x SMA-type antenna opening
- Hukommelse
- 2 x 260-pin DDR4-2400 SO-DIMM, up to 64GB
- Lyd
- 1 x Audio (Mic-in/Line-out)
- Montering
- option need to be ordered Wall mount kit DIN-rail kit
- IP-Tæthed
- IP40
- Ethernet
- 3 x 10/100/100 Mbps Ethernet (Intel® i219LM, Intel® i211AT)
- USB
- 2 x USB 3.1 Gen2 2 x USB 3.1 Gen1 2 x USB 2.0
- Digital I/O
- 8-CH TTL DIO via DB9 female
- Dimensioner
- ((W x D x H) 250 x 170 x 60 mm (9.84” x 6.69” 2.36”)W x D x H) 250 x 170 x 60 mm (9.84” x 6.69” 2.36”)
- Chok/Vibration
- Shock IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) Vibration IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
- SIM kort
- 1 x Front-access SIM slot
- Approval
- CE, FCC Class A
- Msata
- 1 x mSATA (enabled in BIOS setting)
- mPCIe
- 2 x Full-size PCI Express Mini Card slot Slot A (USB + PCIe signal) Slot B (USB + PCIe + SATA signal)
- TPM
- 2.0
- SSD
- 2 x 2.5” swappable HDD drive bay (max. up 9.5 mm height)
8th gen Intel® Core™ i7/i5/i3 Celeron® ULT processor (Whiskey Lake-U)
Dual-channel DDR4 2400 SO-DIMM up to 64GB memory
2x HDMI, 1x VGA
3x GbE LAN
4x COM
6x USB
Fanless -40°C to +70°C* operating temperature
9 to 36 VDC wide range DC power input
AMS.AXView intelligent remote monitoring software for IoT
