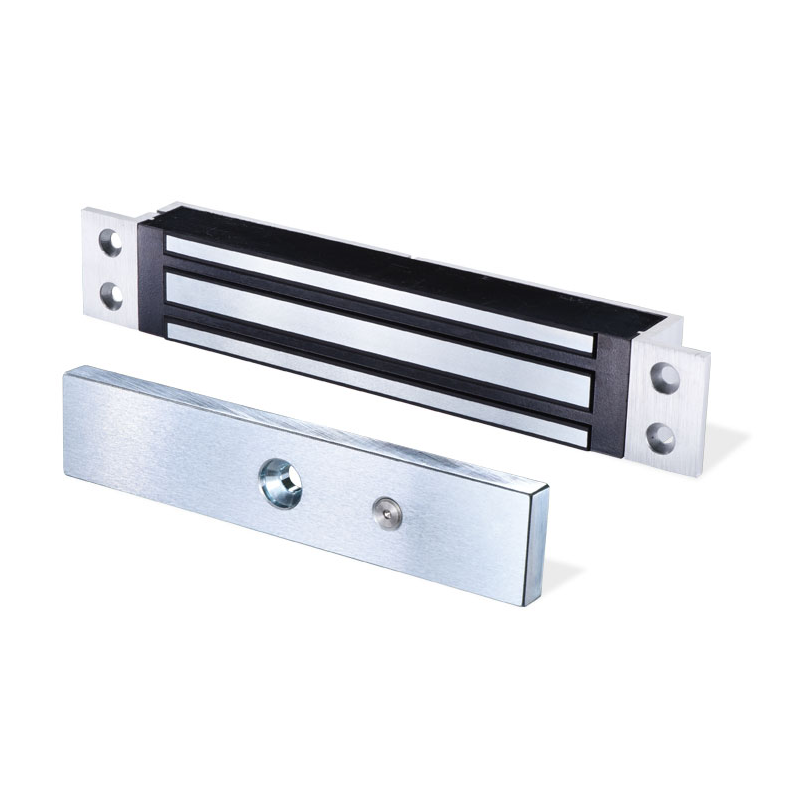

Electronic door magnet for 12 / 24VDC for inlay in door frame. Up to 272kg holding force. IP67 also for outdoor mounting
Product code: DOOR-MAGNET-MORT6
Door-magnet-Mort6 An engineer for firing in frame and is thereby suitable for sliding door.Door-Magnet-Mort6 can be used with all access control controls that have relay outputs. The product contains a powerful magnet that "locks" is fixed to the piece of metal that is mounted on the door. When there is voltage on Door-Magnet Mort6, the door cannot be opened. When access control is accepted e.g. A password, it will disconnect the power to the magnetic coil and the magnet drops, so that the door can be opened.
Team power with excitement on the spool is up to 272kg.
Connection - 4 led cable:
12volt DC: Red and white are +, black and green are -
24volt DC: Red is +, green is -, white and black connect together
DOOR-MAGNET-MORT6
1 Item
Elektronisk dørmagnet til skydedør etc.
Holdekraft op til 272 kg
Aluminium hus og vandalsikker
Forsyningsspænding for hold: 12VDC eller 24VDC, 6 Watt
Omskiftning mellem 12 og 24VDC
Ingen holdekraft ved spændingsløs
Driftstemperatur: -10 - 55°C
Fugtighed: 0-95% non-condensing
Dobbelt-magnet: 187 x 38 x 27 mm
Dør-plader: 185 x 38 x 12 mm
Vægt: ca. 2kg
Tilkøb Adgangssystem - se Tilbehør
