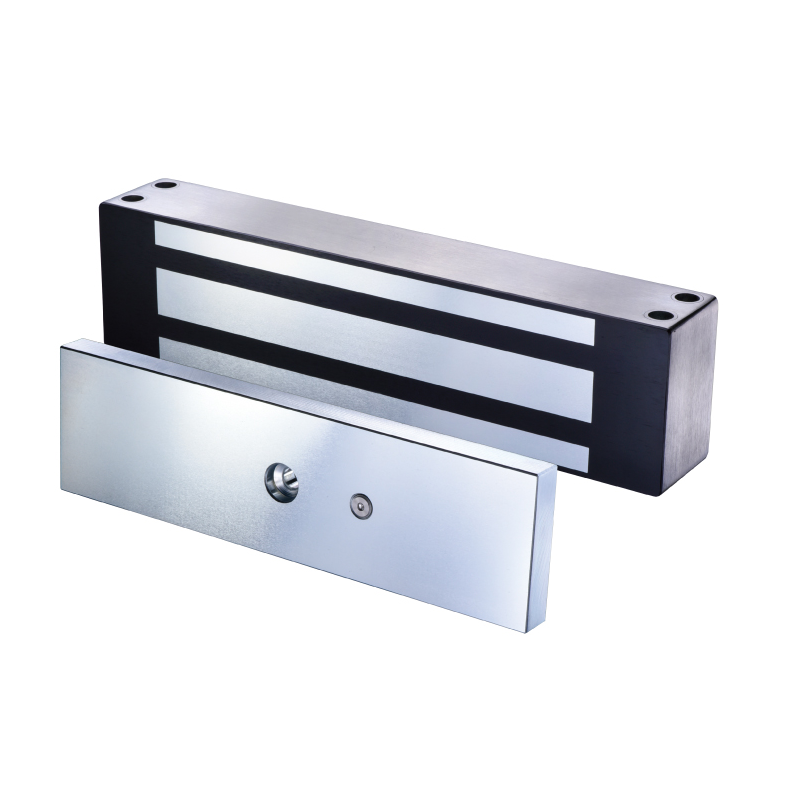

Waterproof electronic door magnet, 12/24VDC automatic switching. Stainless steel housing. Holding power up to 545kg

Product code: DOOR-MAGNET-V12CB

Door magnet with holding force up to 545kg
Rusr free steel cabinet Full sealed with epoxy
Supply voltage for teams: 12 / 24VDC 6Watt
No holding force at voltageless
Operating temperature: -10 to + 55 ° C
Magnet: 220 x 68 x 42 mm
Face plate: 185 x 61 x 16 mm
anti magnetic function
Weight: approx. 5 kg

  • Add to Comparison Remove from Comparison
    • 1,583.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    DOOR-MAGNET-V12CB is 100% waterproof in stainless steel execution to the compromious harsh environment. DOOR-MAGNET-V12CB can be used with all access control controls that have relay output. The product contains a powerful electro magnet that "locks" itself fixed to the piece of metal that is mounted on the door. When there is voltage on Door-magnet V12CB, the door cannot be opened. An access control connected to DOOR-MAGNET-V12CBaccepting e.g. A password will interrupt the voltage of the magnetic coil and the magnet drops so that the door can be opened. Holding power: 545 kg. 12 or 24VDC voltage to the holding magnet.

    DOOR-MAGNET-V12CB
    2 Items
