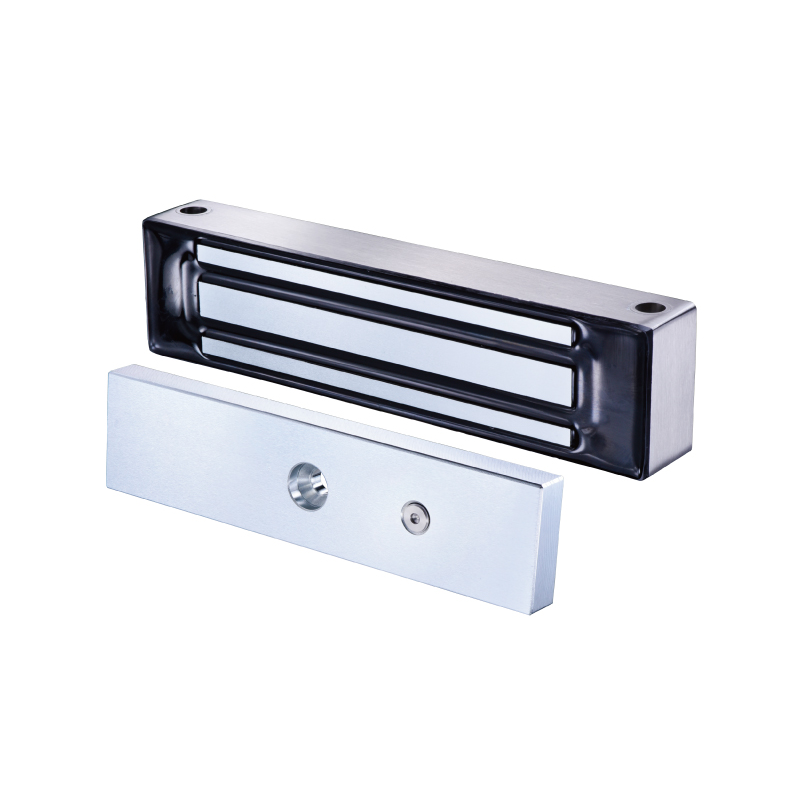

Waterproof electronic door magnet, 12 / 24VDC switching. Stainless steel, 100% sealed. Holding force up to 363 kg
Product code: DOOR-MAGNET-V8
Door-magnet-V8 is 100% waterproof in stainless steel execution to the compromious harsh environment. Door-magnet-V8 can be used with all access control controls that have relay output. The product contains a powerful electro magnet that "locks" itself fixed to the piece of metal that is mounted on the door. When there is voltage on Door-magnet-V8, the door does not open. An access control connected to Door-magnet-V8 accepting eg. A password will interrupt the voltage of the magnetic coil and the magnet drops so that the door can be opened. Holding power: 363 kg. Switch between 12VDC and 24VDC voltage to the holding magnet.
DOOR-MAGNET-V8
2 Items
The door magnet with holding force up to 363 kg
Rust free steel cabinet full sealed with epoxy and is vandal safe
Voltage for hold: 12VDC or 24VDC, 6 Watt
Switch between 12 and 24VDC
No holding force at no voltage
Operating temperature: -10 to + 55 ° C
Magnet: 216 x 53 x 32 mm
Amaturple plate: 185 x 45 x 14 mm
anti magnetic function
Weight: Approx. 4.5 kg
