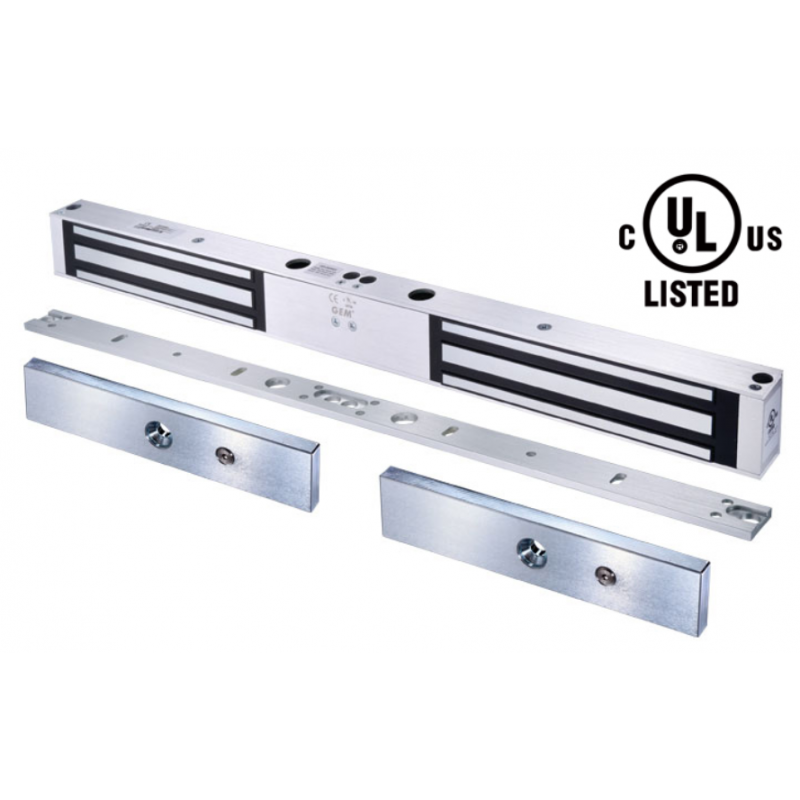

Double electronic door magnet for 12/24VDC switching, with Bond sensor. Indoor double doors. Holding force up to 2 x 272 kg

Door-magnet-dual6 is used for wing doors, swing doors, double doors o.li., where an electronic locking plate cannot be installed. Door-magnet-dual6 can be used with most access control controls that have single or double relay output. The product contains 2 powerful electromagnets that "lock" themselves to the piece of metal mounted on the respective door. When there is voltage on Door magnetic dual6, the door cannot be opened. An access control connected to Door magnetic dual6 which accepts eg. A password will interrupt the voltage to the magnetic coil and the magnets release so that the doors can be opened. Holding power: 2 x 2724 kg. Automatic switching between 12VDC and 24VDC voltage to the holding magnet. Estimated power consumption is a minimum of 12watt. Since the electromagnets are supplied with voltage in hold mode, the power supplies for door magnet dual6 should deliver at least the double power (25 - 50watt), this to minimize heat generation in the power supply.
