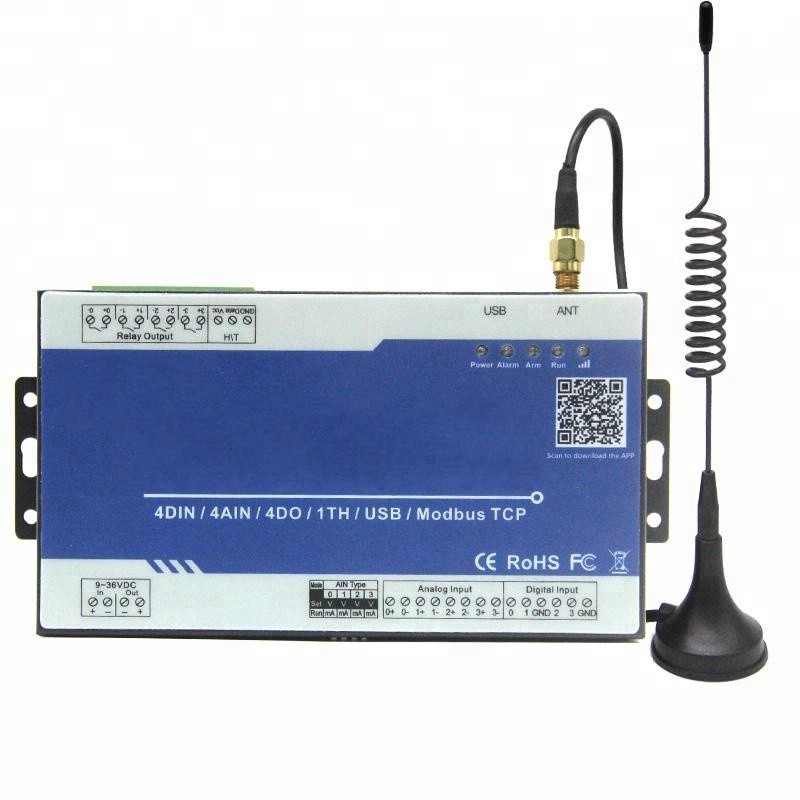

GSM alarm with 4 x digital in, 4 x analog in, 4 x relay. Alarms for mobile phone via SMS or call, App, 4G
Product code: GSM-ALARM271
GSM-ALARM271 (4DIN,4AIN/PT100,4Relay,1TH,USB) is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system, BTS monitoring, telemetrically, automatically control system. It can be used as a remote switch, remote I/O, remote smart PLC, timer switches.
GSM-ALARM271
3 Items
Data sheet
- Weight
- 650g
- Driftstemperatur
- -10-+70 °C
- Strømforbrug
- Max.: 12V/300mA
- Batteri
- 3.7V 1200mAH
- Frekvens
- 850/900/1800/1900MHz
- Relæ
- 4 x Rated: 5A/30VDC,5A/250VAC
- Luftfugtighed
- Relative humidity 95% (condensation free)
- USB
- 1 x USB
- Strømforsyning
- 9-36VDC
- Dimensioner
- 140mm x 88mm x 30mm
- SIM kort
- Standart SIM
- Indgang
- 4 Digital input, NC/NO type, one of it can be used as Pulse Counters;
4 x digital inputs NC / No type
4 x analog inputs. 12 bit resolution
0-5V, 4-20mA or 0-20MA
4 x Relay outputs 5A / 30VDC, 5A / 250VAC
1 x USB port for setup
GSM 3G 4G The mobile network
9-36VDC (12V / 300mA)
Backup Battery 3.7V 1200mAh
Operating temperature -10- + 70 ° C
Adapted SMS Alarm messages
App for iOS and Android
without SIM card
