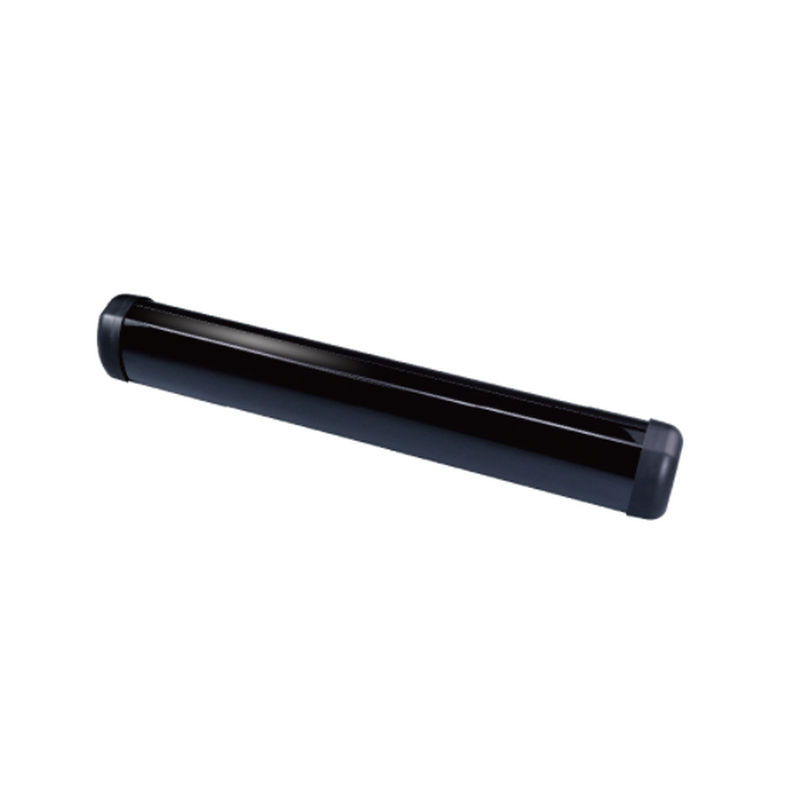

IR safety probe-to-door automatics. Prevents the door closing when crossing. 0 to 2.5 m viewing distance. IP54. Relay output

Product code: DOOR-IRSENSOR-G

IR safety sensor for automatic doors prevent property damage and personal injury
Mounted above the frame or on the door
Relay output connected dørautomatikstyringen
Length: 360 mm | IR beam adjustment: 5-25 °
6 measuring points
detector distance: 0 to 2.5 meters
Max. installation height: 2.6 meters
Relay Output is continuously active when the thing or person is detected
Dimensions: 360 x 45 x 45 mm
Weight: 350g
Supply voltage: 12 - 24VDC or 12 - 24VAC
IP54
EU standard: EN16005

  • Add to Comparison Remove from Comparison
    • 2,079.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    Infrared safety sensors used to detect all static and moving objects within their detection. DOOR-iRSENSOR-G is a safety sensor, Italy designed to provide security protection for automatic swing doors. It combines the active infrared technology and opsitionsfølsom detection (PSD) to ensure accurate detection. It may be mounted to either pull or push the side of the door and functions as an external and internally monitored security system.

    DOOR-IRSENSOR-G
    1 Item
