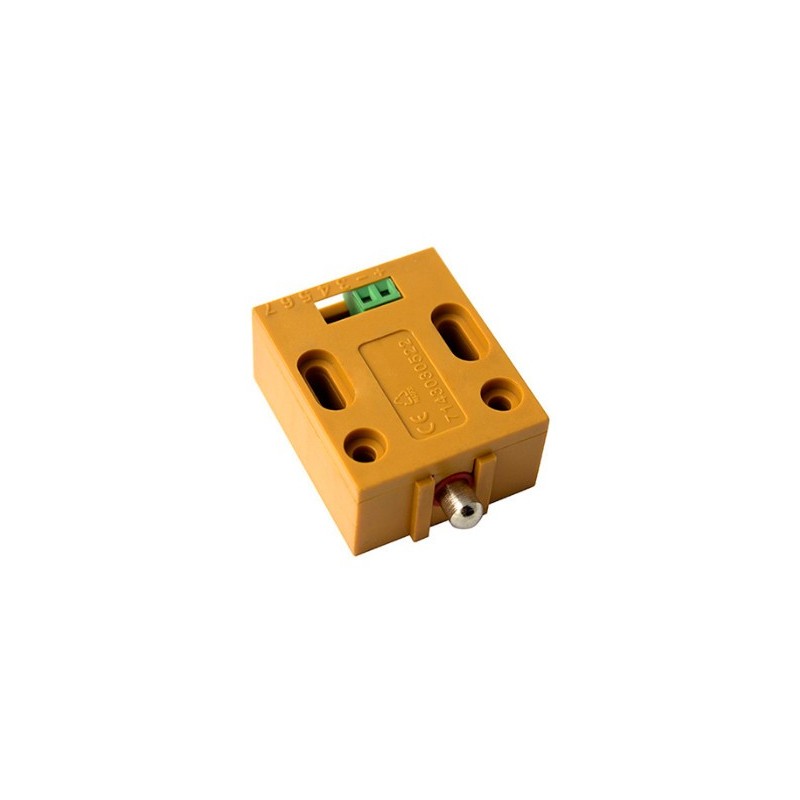

Electronic lock, for mounting on cabinets and doors, closing control, holding force of 50kg, 12VDC
Product code: LOCK-CAB12V50
Compact size cabinet lock. Indicates whether the door / door is closed / locked. There is spring activated bucket out when the pallet is released.
The lock is very suitable for small doors where the space is narrow.
The plastic cabinet suitable for eg. archive cabinet, medicine cabinet, built-in cabinet, drawers, etc.
LOCK-CAB12V50
Data sheet
- Weight
- 0,11kg
- Driftstemperatur
- -10°C - +55°C
- Spænding
- Styrespænding - 12VDC
- Dimensioner
- 41 x 35 x 19mm Pal: ø9mm, 18mm
- Anvendelse
- Kan anvendes på træ, aluminium og metal
- Other
- Holdekraft: 50 kg
Compact motor-controlled lock with separate pawl
Control voltage - 12VDC
With door-closed status
Holding force: 50 kg
Operating temp. -10 ° C - + 55 ° C
Dimensions: 41 x 35 x 19mm
Pal: ø9mm, 18mm
Weight: 0.11kg
Can be used on wood, aluminum and metal
