KVM Extender with DVI, 3 x USB2.0, 100meter of CAT6 / CAT7, 1920 x 1200, during 1ms delay. 5VDC, set
Product code: BOOST-DVI100-3U

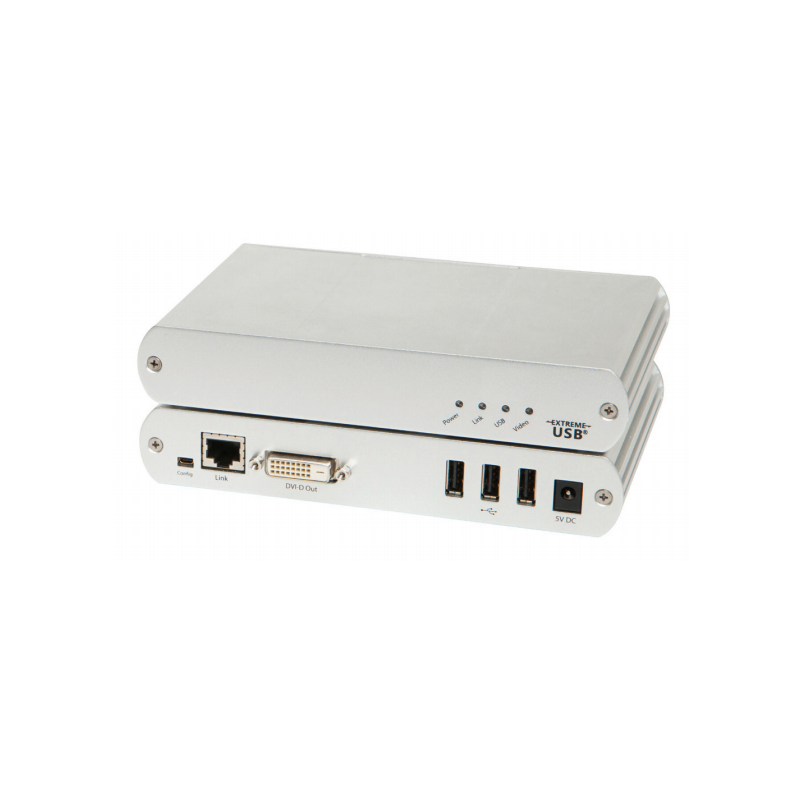

BOOST100DVI extender kit has the latest and most robust HD video and USB extension technology. BOOST100DVI you to place a computer up to 100 meters away from a workstation using a single CAT 5e / 6/7 cable. BOOST100DVI supports full HD video and USB 2.0, which allows to control keyboards, mice, flash drives, audio equipment and other USB 2.0 and 1.1 devices.
Resolution up to High Definition 1920 x 1200 Color Depth: 24-bit . The delay between transmitter and receiver is less than 1millisekund, which is fully acceptable and does not appreciable.
Rev: LO
BOOST-DVI100-3U
1 Item
Data sheet
- Forsyning
- 5VDC - strømforsyning medfølger
- Kabinet
- Aluminium - Silver anodized
- Driftstemperatur
- 0 - +40°C
- Porte
- 3 x USB2.0
- Kabel
- Op til 100 meter Cat6 / 7 lige igennem netværkskabel
- Mål og vægt
- 175 x 112 x 30 mm,
- Video
- 1 x DVI-D 1920 x 1200, forsinkelse mindre end 1 ms
DVI-D og USB2.0 KVM-extender over netværkskabel
Punkt-til-punkt DVI-video og USB
Op til 100 meter over et enkelt CAT 5e / 6 / 7-kabel
Ukomprimeret HD-video med 1920 x 1200 opløsning
24-bit farvedybde
USB 2.0 op til 40 Mbps
ExtremeUSB® extender
Transparant USB overførsel
Maks. forsinkelse er op til 1ms
Plug and Play; ingen softwaredrivere kræves
Fungerer med operativsystemer fra: Windows®, OS X® og Linux®
Monteringskit: gør det muligt at montere enheder på vægge, skriveborde eller 19″ stativer.
