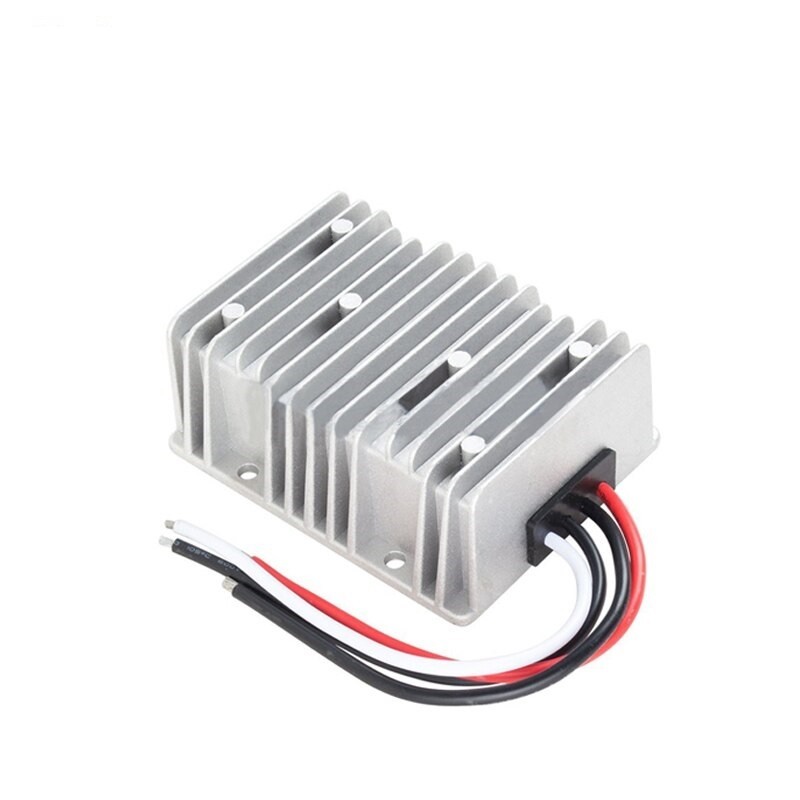

48VDC 10A (480Watt) from 24VDC converter 20A, the DC / DC converter, step-up, not galvanically isolated

Product code: DC-DC48V-95W

24VDC to 48VDC 480Watt step-up converter
Not galvanic isolation between input and output
Input from 20 - 36VDC
93% efficiency
Max. ripple full load: 170mV
No-load current: 70mA
overvoltage and overheat protected
Aluminum metal housing with IP68 density
flange mounting
Cable length: 14cm
Operating temperature -40 - + 80 ° C
Dimensions: 100 x 80 x 39mm
Weight: 500g

  • Add to Comparison Remove from Comparison
    • 944.00 DKK
    Tax excluded
    Physically in stock
    Quantity

    DC-DC48V-95W
    5 Items

    Data sheet

    Driftstemperatur
    -40°C - 75°C
    Effekt
    385Watt
    Montering
    Vægmontage
    IP-Tæthed
    IP68
    Dimensioner
    100 x 80 x 39mm
    Beskyttelse
    Surge protection
