Full-Sized CPU kort 6th/7th Gen. Intel® Xeon® E3 / Core™ i7/i5/i3/Pentium® / Celeron® PICMG 1.3

Product code: I1151-Q170

6th/7th Gen. Intel Xeon E3/Core i7/i5/i3 max. 4.0GHz
C236 PCH
2x DDR4-2133 DIMM, max. 32GB, ECC comp.
2x Intel Gbity LAN
3xUSB3.0, 2xUSB2.0
4xCOM
6xSATA III
1x MINI PCI-E
Watchdog Timer
Digital I/O

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    Sidste nye teknologi. Industrielt Indstiks CPU kort PICMG 1.3 Full size.
    Driftsikkert og til professionelt brug.

    I1151-Q170

    Data sheet

    CPU
    6th/7th Generation Intel® DT Xeon® E3 & Core™ i7/i5/i3/Pentium®/ Celeron® QC/DC processors
    Udgange

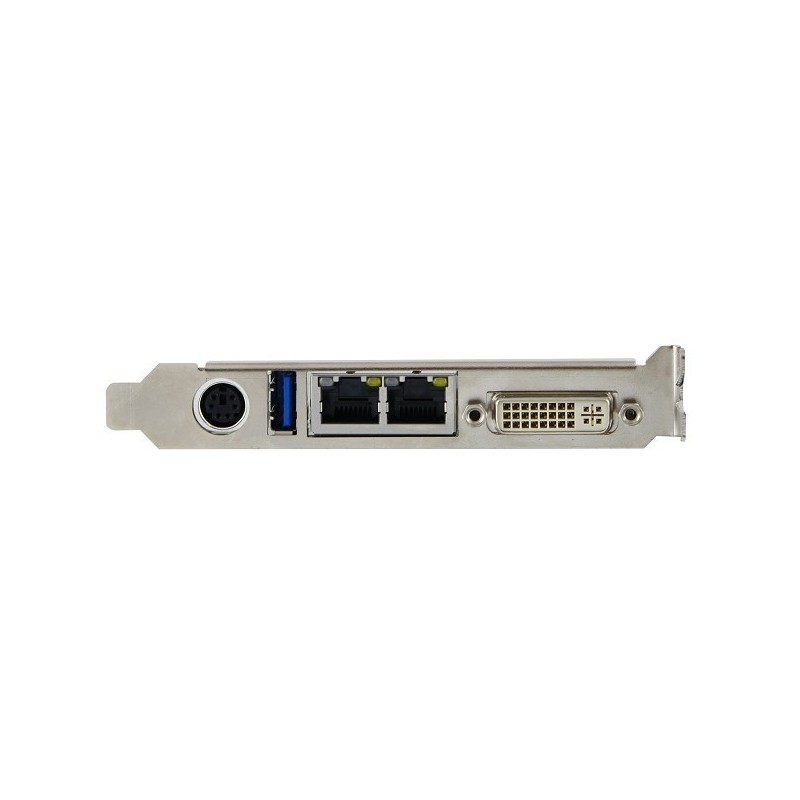

    Support DVI-I, VGA, DVI-D
    Driftstemperatur
    0°C ~ 60°C (32°F ~ 140°F)
    Porte
    1x RS-232/422/485(Jumperless selection) 3x RS232
    Chipset
    Intel® C236/ Q170 PCH
    BIOS
    AMI BIOS
    Watchdog
    256 levels
    OS SUPPORT
    Windows 7, 8 (32/64bit) and 10 (64bit)
    SATA
    6x SATA III
    Hukommelse
    2 x DDR4-2133 DIMM, Max 32GB (ECC compatible)
    Lyd
    Intel® C236 PCH built-in HD audio controller + Realtek ALC662 w/ 5.1 channel
    Luftfugtighed
    90% (non-condensing @60°C)
    Ethernet
    LAN Connector 2x RJ-45 on board, Intel® I219LM Gigabit LAN PHY Intel® I211AT PCI-E Gigabit LAN( as 2nd LAN)
    USB
    3x USB3.0 on board 2x USB2.0 via pin header 1x USB2.0 via Mini PCI-E
    Digital I/O
    I/O (4-in/4-out)
    Dimensioner
    338mm x 126mm (13.31“ x 4.96“)
    Antal LPT porte
    1x LPT
    Grafik
    6th Generation Intel® Core™ DT Xeon® E3 & Core™ i7/i5/i3/Pentium®/ Celeron® integrated graphics VGA Max. shared memory – 1024MB
    Udvidelser
    1x Mini PCI-E
