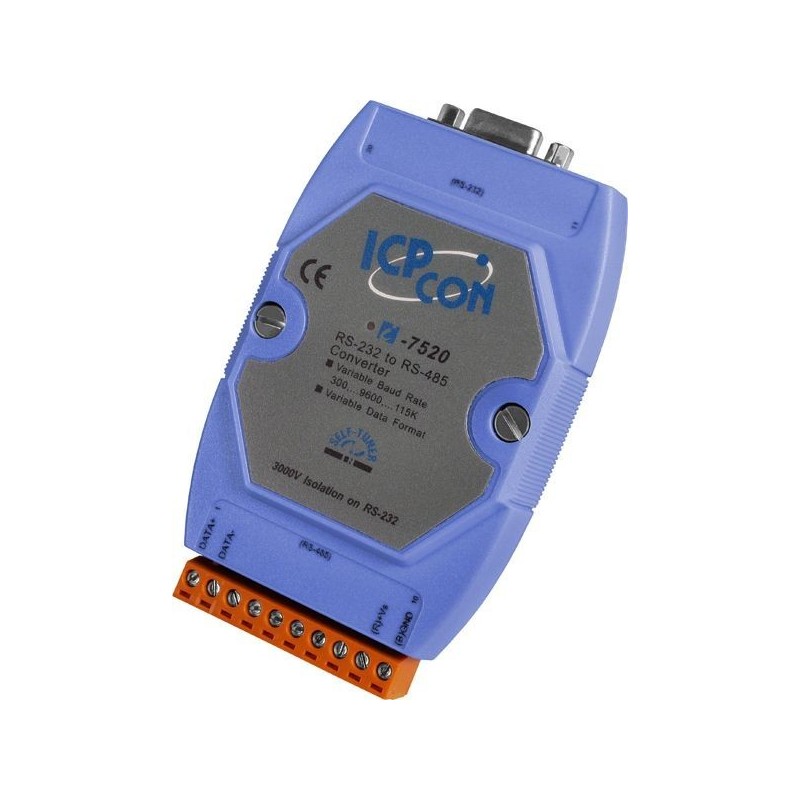

RS232 for RS485 converter, 1200m, 115.2kBit / s, 3kV isolation on RS232 side, 10 - 30VDC, -25° - +75°C

Product code: M485-CNV232+I

Optoisolated RS-232 for RS485 converter
3kVDC isolation on RS232 from DC input
ESD protection for RS232 / 485
Baud rate 300 bit / s to 115,200 bit / s
Supports power inputs of +10 V DC to +30 V DC
Operating temperature: -25 ° to + 75 ° C
For DIN rail mounting

  • Add to Comparison Remove from Comparison
    • 893.00 DKK
    Tax excluded
    On the way in
    Quantity

    Easy installation. The baud rate is automatically recorded (Max 155200 BPS)
    and adjusted by the integrated self-setting ASIC.
    The converter is mounted on DIN rail and supplied via unregulated 10 to 30 VDC power supply.

    M485-CNV232+I

    Data sheet

    Forsyning
    10 - 30 VDC 1,2 W
    Driftstemperatur
    -25 °C ~ +75 °C
    Stik
    RS232 DB9 hun og RS422/485 samt forsyning skrueterminaler
    Afstand
    Op til 1,2 km på RS422/485-siden
    Isolation
    3000 VDC
    Dimensioner
    (W x H x D) 72 mm x 118 mm x 35 mm
    Funktioner
    Automatisk styring af TX Understøtter både halv og fuld duplex
    Data
    1,2 til 115,2 kbit/s
