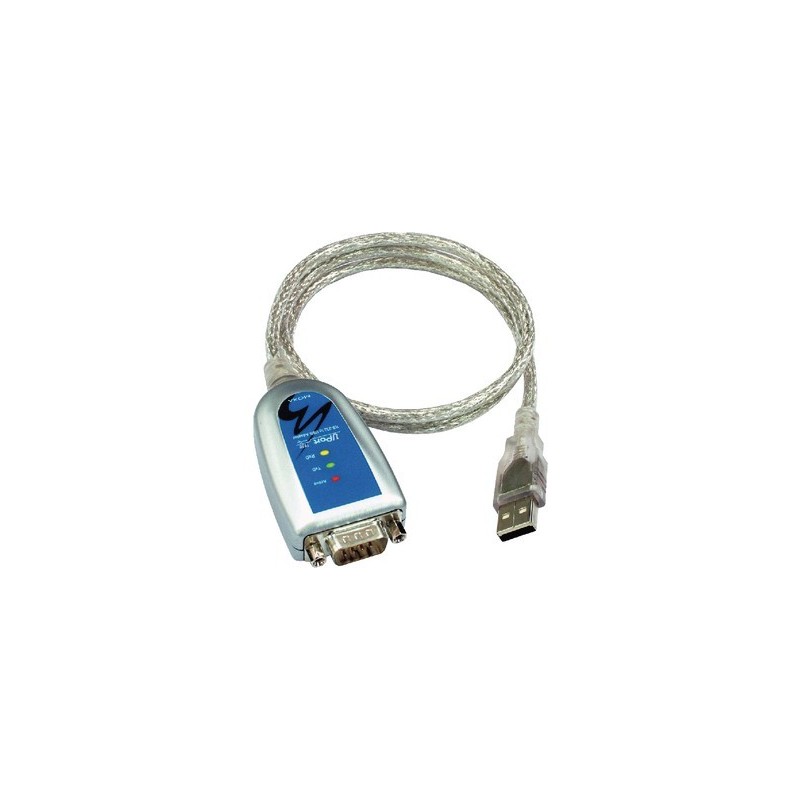

USB to 1 x RS422 / 485 adapter, opto-insulated, with COM mapping, MOXA UPORT 1130

Product code: CNV-USB-SER9+M3

Get a RS485 / RS422 port on the PC via the USB port
Software for choosing a fixed COM port - very useful
Compatible with USB 2.0
12 Mbps USB data rate
921.6 kbps maximum baud rate
Driver for Windows, WinCE, and Linux
Mini DB9 male for terminal block adapter
LED for indication of USB and TxD / RxD activity
15 kV ESD protection for 2 kV optical isolation

  • Add to Comparison Remove from Comparison
    • 1,531.00 DKK
    Tax excluded
    On the way in
    Quantity

    1-port RS-422/485 USB-to-serial converter.

    USB Interface
    Compliance: SB 1.0/1.1 compliant, USB 2.0 compatible
    Connector: USB type A
    Speed: 12 Mbps (Full-Speed USB)

    Serial Interface
    Number of Ports:    1
    Serial Standards: RS-422/485
    Connector: DB9 male
    ESD Protection:    15 kV embedded
    Electrical Isolation: 2 kV
    Baudrate: 50 bps to 921.6 kbps
    Flow Control: RTS/CTS, XON/XOFF
    FIFO: 64 bytes
    RS-232:    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    RS-422:    TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
    RS-485-4w:    TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
    RS-485-2w:    Data+(B), Data-(A), GND
    RS-485 Data Direction:    ADDC® (Automatic Data Direction Control)
    Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64),
    Windows 2012 (x64), Windows Embedded CE 5.0/6.0
    Android Driver: Linux Real TTY Drivers    Linux 2.4.x, 2.6.x, 3.x
    Weight: 65 g
    Dimensions: 38.4 x 60 x 20 mm
    Operating Temperature:    0 to 55°C
    Storage Temperature: -20 to 70°C
    Ambient Relative Humidity: 5 to 95% (non-condensing)
    Power Consumption: 65 mA @ 5 VDC

    CNV-USB-SER9+M3
