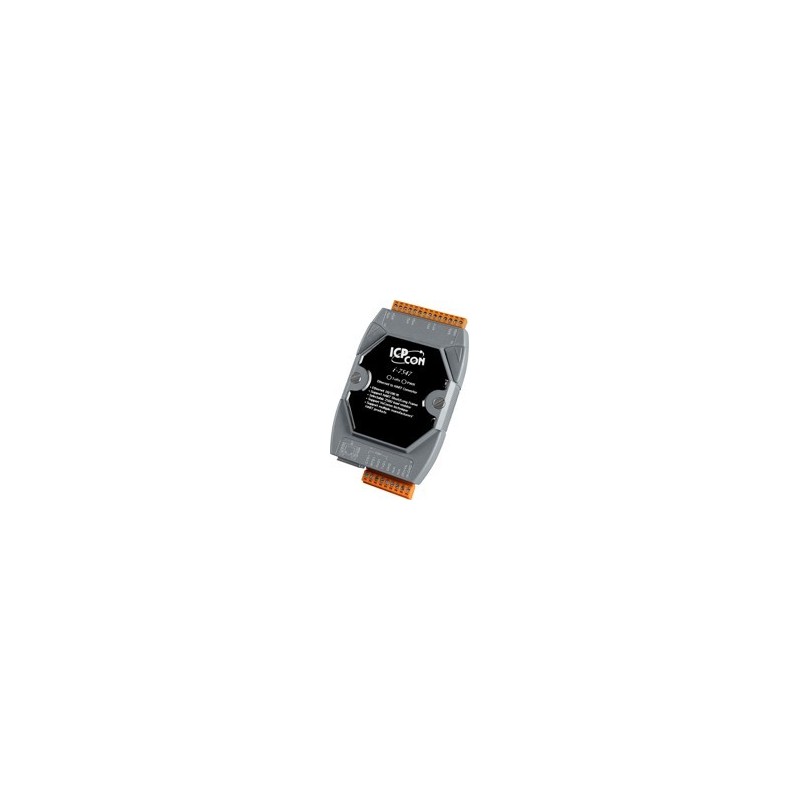

Ethernet to HART Convert - Master. Allows 2 Master. Gateway.

Product code: M485-ETH-HART-I

Supports HART Short / Long Frame
Supports Hart Burst Mode
Supports Point-to-point or Multi-Drop Hart mode
supports connection of up to 15 Hart slave devices
Allow 2 Hart Master
HC_Tool tool for module configuration and HART communication
support firmware update via Ethernet
PWR / TXRX indication LED
4KV ESD protection
built-in watchdog
Selectable 250Ω load resistance < Br> 4 Hart Channels
Support VXCOMM Technology
Built-in Web Server for Network Setting

  • Add to Comparison Remove from Comparison
    • 3,778.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    Ethernet for HART converter
    specially designed as a master unit on the HART bus

    M485-ETH-HART-I
    1 Item

    Data sheet

    Driftstemperatur
    -25 ℃ ~ +75 ℃
    Stik
    2-pin screwed terminal block for each HART port
    LED
    PWR : Power Indicator TxRx : Data Received from Ethernet / HART Indicator
    Kanaler
    4
    Montering
    DIN-Rail or Wall Mounting
    Luftfugtighed
    5% ~ 95% RH, non-condensing
    Ethernet
    10/100 Base-TX with Auto MDI/MDI-X
    Isolation
    500 VDC
    Other
    Selectable 250 Ω terminal resistor for each HART port.Power reverse polarity protection, Over-voltage brown-out protection
