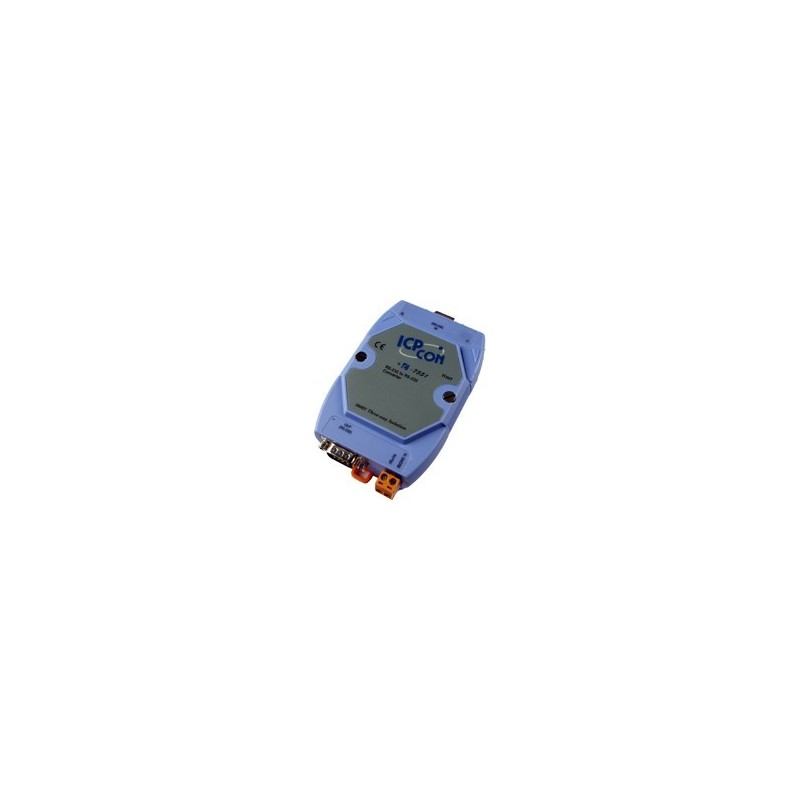

RS232 for RS232 with optical isolation, DB9 male / female, RX, TX, RTS / CTS or DSR / DTR

Product code: M485-CNV232I232

RS232 galvanic isolator, 3000VAC
With dual DC-DC converter, provides isolation both ways
Transmits Tx, Rx, RTS and CTS or DSR and DTR (selected)
Up to 115 kbit / s
Entrance: DB9 female, output: DB9 male
10-30VDC, screw terminal
DIN rail

  • Add to Comparison Remove from Comparison
    • 924.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    Type: Full duplex RS232 for RS232 optical isolator with DB9 connector
    Isolation: 3000 VDC
    Speed: Up to 115 kbit / s
    Other: Internal jumper for selecting RTS / CTS or DSR / DTR.
    Comes with brackets for DIN rail mounting
    Supply: +10 VDC ~ +30 V DC Power Supply available as an accessory
    Input: DB9F Output: DB9M.
    Power Supply Screw Terminals

    M485-CNV232I232
    1 Item

    Data sheet

    Forsyning
    +10 VDC ~ +30 V DC, watt Strømforsyning medfølger ikke (se tilbehør)
    Isolation
    3000 VDC
