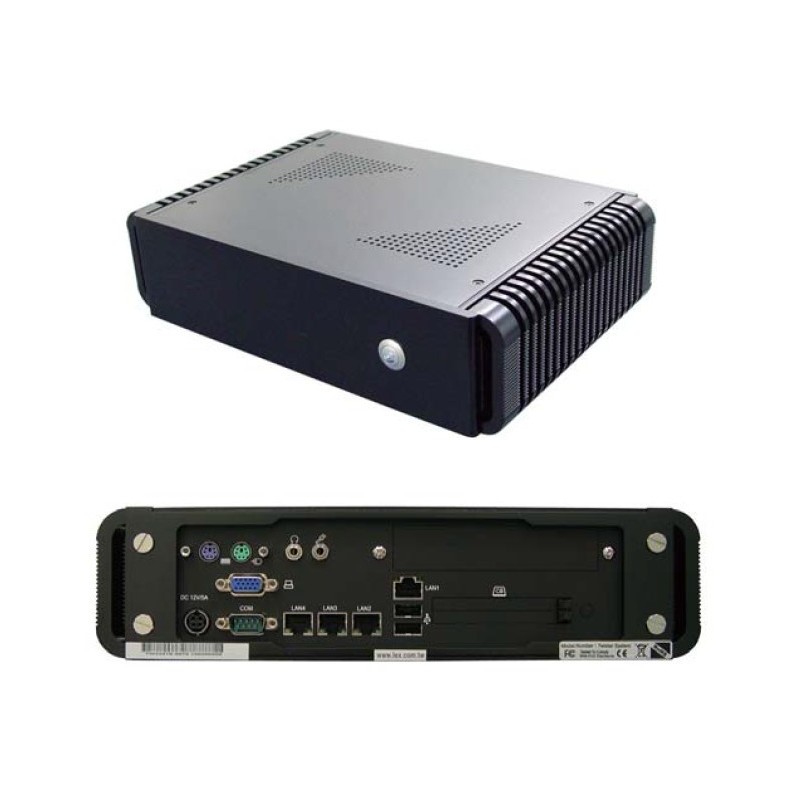

Embedded PC,1GHz Incl. 2,5"SATA 320GB + DDR2

Product code: EPC-C7-1G4L

VIA C7 nano BGA2 400 pin 1 GHz
Integrated with VIA CN700.
1 x DDR II SDRAM 533/400 (max. 1GB)
SATA
AC-Link for Audio CODEC, AC’97 2.1
2 x USB 2.0(external) + 6 x USB 2.0(internal)

  • Add to Comparison Remove from Comparison
    • 5,535.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    • CPU: VIA C7 nano BGA2 400 pin 1 GHz, L1/L2 128K on die
    • Chipset: VIA CN700 + VIA VT8237R Plus
    • FSB: 400/533 MHz
    • Graphics: Integrated with VIA CN700. Shared system memory up to 64MB. MPEG-2 hardware VLD
    • RAM: 1 x DDR II SDRAM 533/400 (max. 1GB)
    • SATA: One channel connector. SATA drive transfer rate is capable up to 150MB/s
    • AUDIO: AC-Link for Audio CODEC, AC’97 2.1
    • LAN: 4 x Realtek 10/100 Mbps. Intel 82541 PI or Realtek RLT 8100C/ 8110SC LAN chip
    • IO: 1x RS232. Supports IrDA 1.0/ASKIR protocol. Supports PS2 keyboard and mouse
    • USB: 2 x USB 2.0(external) + 6 x USB 2.0(internal)
    • PCMCIA: Richo R5C812 PCMCIA chipset compliant PCI with ver.2.3. Supports 2x sockets, for Cardbus(Card 32) and 16-bit Card
    • IDE: Ultra DMA-133/100/66 transfer protocols. 1x 40 pin 2.54mm, 1x44 pin 2.0mm. Support Compact Flash card type II for ATA interface
    • Interface: 1x Mini PCI for only PCI rev: 2.2 interface
    • Power: On board DC +12V convert to +3.3V/+12V/+5V for system
    • Operating temperature: 0~60°C (CF card) / 0~40°C (3.5" HDD)
    • Humidity: 5~95% @ 60°C, non-condensing
    • Other: 3G / Wi-Fi / GPS / 1~4 Video-IN / 4 COM ports / Rechargeable Battery. Optional LAN / DC +6~+36V / Parallel port / DIO
    • Dimensions: 300 W x 263 D x 75 H mm
    • Weight: 2,9 kg
