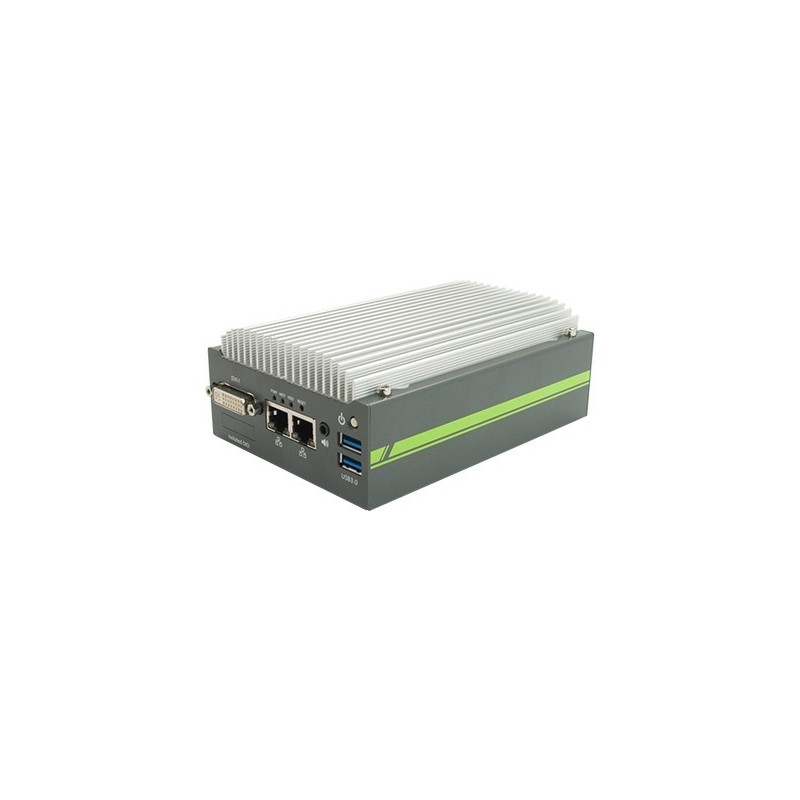

Compact Embedded PC Bay Trail 1.91GHz, 2 xPOE Ethernet POC-200
Product code: EPC-BT-2POE
EPC-BT-2POE ultra-compact controller series. EPC-BT-2POE series further incorporates greater computing power and more versatile functions in its 3.5" HDD size
The new Intel® Atom™ Bay Trail processor brings a leaping for both arithmetic and graphics performance. With Atom™ E3845 quad-core processor, EPC-BT-2POE can deliver more than 200% performance over previous D525/D2550 platform. It also feature comprehensive I/O interfaces to make use of the advance of compting power. Two Gigabit Ethernet and three USB 3.0 ports are integrated so you can connect GigE/USB3 cameras for vision applications. Its IEEE 802.3at PoE+ option is capable to supply 25.5W each port to power you IP camera for surveillance applications. EPC-BT-2POE also features up to four COM ports and digital I/O for general-purpose industrial applications.
Size is another attractive feature of EPC-BT-2POE. Its 6"x4" footprint makes installation of EPC-BT-2POE extremely easy. And its -25°C to 70°C operating temperature eliminates the restriction for deployment environment. Neousys provides derivative models with different CPU and I/O configuration so you can always find a fit EPC-BT-2POE for your application.
EPC-BT-2POE
1 Item
Data sheet
- Weight
- 1.1 kg (including one 2.5” HDD)
- CPU
- 1.91GHz Intel® Atom™ E3845 Quad-core processor
- Forsyning
- Built-in 8~35V DC Input Connector 1x 2-pin pluggable terminal block for DC input
- Udgange
- 1x DVI-I connector for both analog RGB and DVI/HDMI outputs
- Driftstemperatur
- -25°C ~ 70°C with SSD , 100% CPU loading */** -10°C ~ 50°C with HDD, 100% CPU loading */**
- Porte
- 2x RS-232/422/485, 2x RS-232
- Hukommelse
- 1x SO-DIMM socket for DDR3L-1333, without
- Montering
- Wall-mounting (standard) or DIN-Rail mounting (optional)
- Temperatur
- -40°C ~ 85°C
- Ethernet
- 2x Gigabit Ethernet ports by Intel® PoE IEEE 802.3at (25.5W PSE)
- USB
- 3x USB 3.0 ports and 1x USB 2.0 port
- Harddisk
- 1x SATA ports with 2.5” HDD/SSD
- Dimensioner
- 149mm (W) x 105 mm (H) x 57 mm (D)
- I/O
- 4-CH isolated DI + 4-CH isolated DO
- Grafik
- Integrated Intel® HD Graphics
- Chok/Vibration
- Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64) Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
- Udvidelser
- 1x mini PCI Express slot with USIM socket
Ultra-compact 150 mm x 100 mm foot-print
Intel® Atom™ E3845 1.91GHz Quad-core
-25°C to 70°C
Fanless
2 x 802.3at (25.5W) Gigabit PoE ports
3 x USB 3.0
2.5" SATA HDD/SSD
optional on-board eMMC
Up to two RS-232/422/485 ports and two RS-232 ports
8~35V DC
