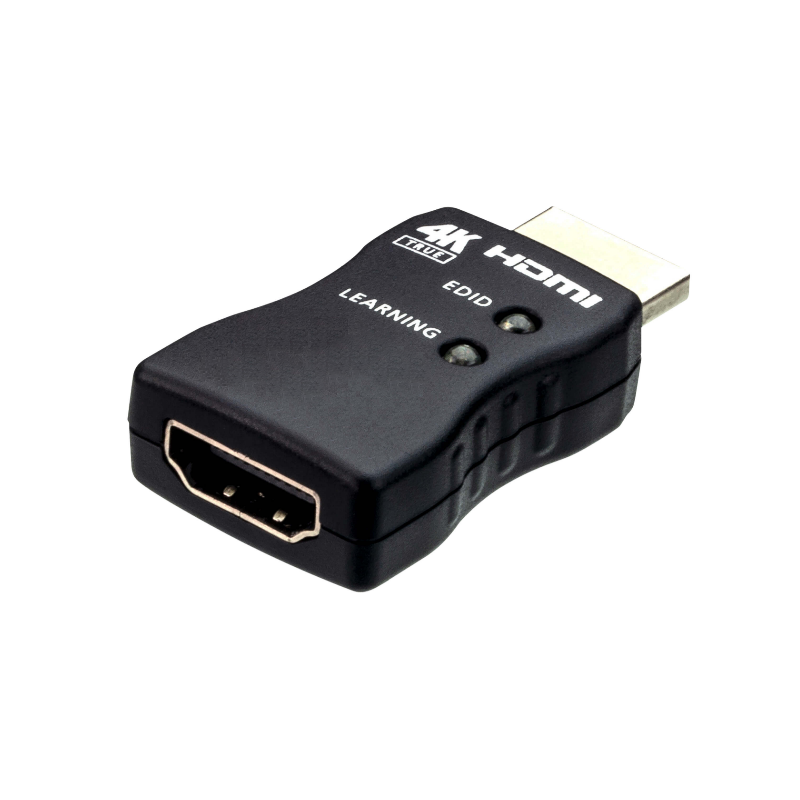

4K HDMI EDID Emulator With Pass Through
Product code: EDID-HDMI4K-GEN
The EDID-HDMI4K True 4K HDMI EDID Emulator is designed to overcome EDID related problems which can occur when used with AV or KVM extenders, switches, and splitters. By learning the EDID from the HDMI display and relaying it to the video source, the EDID-HDMI4K can effectively resolve video communication problems that occur when EDID data between the HDMI video source and display are not correctly synchronized. Moreover, after the display’s EDID is learned, the EDID-HDMI4K can be used in place of a monitor to keep a PC or Server awake for remote access via IP.
For product application, the EDID-HDMI4K is an ideal tool for wiring installation in traffic stations and commercial centers.
EDID-HDMI4K-GEN
2 Items
Data sheet
- Weight
- 0.08 kg
- Driftstemperatur
- 0 - 50 ºC
- Porte
- 1 x HDMI Type A Male, 1 x HDMI Type A Female
- Strømforbrug
- DC5V:0.1W:0.4BTU
- LED
- Power status (Green x 1), Learning (Blue x 1)
- Strømforsyning
- Bus-powered (5 VDC from source device)
- Dimensioner
- 4.40 x 2.40 x 1.18 cm
- HDMI
- HDMI 2.0 (3D, Deep Color), HDCP 2.2 Compatible, Consumer Electronic Control (CEC)
EDID from the HDMI display to the video source
HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
Up to True 4K (3840 x 2160 @ 60Hz 4:4:4)
LED indicators to show device status
Powered by HDMI source
