Fiber Cable Tester - Tester fiber optic cables in single mode

Product code: TEST-FIBER-SM+

Cable test transmitter and receiver for single mode fiber optic

  • Add to Comparison Remove from Comparison
    • 7,553.00 DKK
    Tax excluded
    On the way in
    Quantity

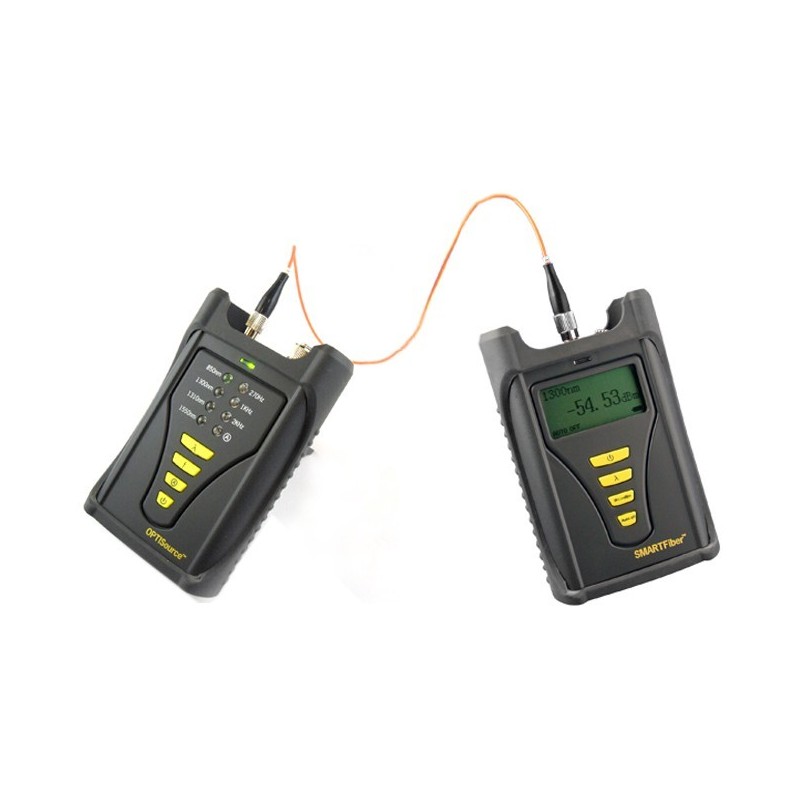

    Professional power measurement equipment in a light guide TEST FIBER-SM + consists of two devices, one transmitter and one receiver. The transmitter unit sends signals through a fiber optic cable and is equipped with a universal adapter that can be used for ordinary fiber interfaces such as ST / SC / FC / FDDA. The receiver unit receives the signal in light guides. Available in 2 versions covering up to 4 wavelengths. Excellent for measuring fiber loss and fiber attenuation. Identification of fiber cable using modulated light source

    TEST-FIBER-SM+

    Data sheet

    Opløsning
    0,01dBm/0,01mW
    Batteri
    4x AA (6V)
    Frekvens
    1kHz, 2kHz, 270kHz
    Sensor
    InGaAs sensor
    Adapter
    Til test af både 2,5mm/1,25mm kabler
    Bølgelængde
    1310/1550nm
    Kalibrering
    850nm, 1300nm, 1310nm og 1550nm
    Dimensioner
    131 x 86 x 40 mm
