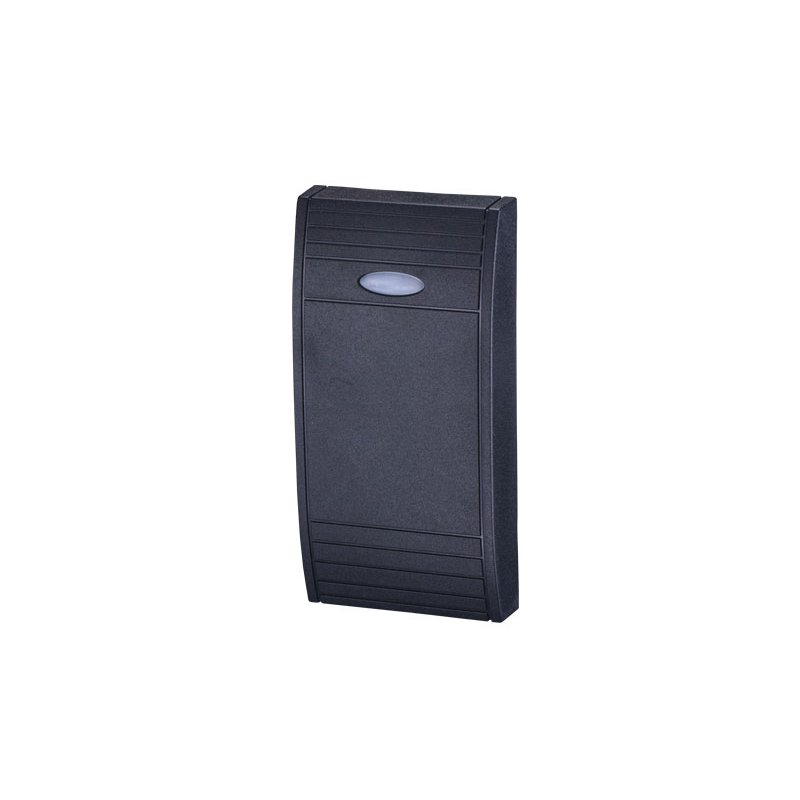

Access control control of electric door lock via Bluetooth APP, Has RFID reader. 200 users. Event log. IP65.

Product code: ADGANG-BT-RFID+

Bluetooth BLE 4.2 (low energy)
Up to 200 users
With user rights
Up to 1000 event logs in memory
Export to Excel spreadsheet
Access with RFID chip (EM, 125kHz)
With LED indicator
APP for iPhone and Android
APP is Easiprox
Range up to 50 meters
Can be set to open by pressing in the APP or automatically when you are within range
With solid state relay - no wear and tear
Adjustable re-lock time 1 - 1800 seconds
3 lock mode: Re-lock, always open, always locked.
Vandal alarm
Supply voltage: 12 to 24VDC
Dimensions: 88 x 44 x 23 mm

  • Add to Comparison Remove from Comparison
    • 1,708.00 DKK
    Tax excluded
    On the way in
    Quantity

    Can be set to open by pressing in the APP or automatically when you are within range
    When you choose to activate Bi-stable function, you can press down the E button on the screen for a few seconds to activate and keep the door unlocked indefinitely.
    ACCESS-BT-RFID is based on the communication between 1 bluetooth reader and access software downloaded APP android and IOS.
    After the reader is powered on and connected to the electric lock, the system is set up with the APP, and users' passwords are entered into the relevant part of the software by installing the APP on their phones.
    Then the user has to keep the Bluetooth function of their smartphones on and press the button in the app when they want to open the door.
    Or they can use the automatic setting to open the door when they approach.
    Since the device works via Bluetooth, it can be placed behind the wall. It doesn't have to be in a visible place.
    When you choose to activate Bi-stable function, you can press down the E button on the screen for a few seconds to activate and keep the door unlocked indefinitely.
    Users can also open the door with the RFID TAG, issued to the individual user.

    User creation takes place in the APP, where the first to register in ADGANG-BT-RFID becomes the administrator of the system
    Users are created in the system with a username and password, so a new user of the system must download the APP and enter the username and password.
